8.3.18 Two-phase Application Curves

VOUT = 0.8 VL = 150 nHSnubber = 1 nF + 1 Ω
fSW = 550 kHzRDCR = 0.2 mΩRBOOT = 0 Ω
Figure 8-12 Efficiency vs Output Current
VOUT = 0.8 VfSW = 550 kHz
Figure 8-14 Load Regulation
VIN = 12 VVOUT = 0.8 VIOUT(DC) = 30 A
IOUT(STEP) = 20 AIOUT(SLEW) > 3 A/µs

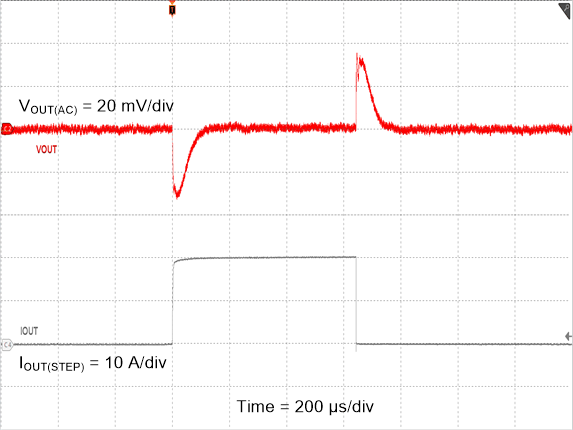

Figure 8-16 Load Transient Response
VOUT = 0.8 VfSW = 550 kHz

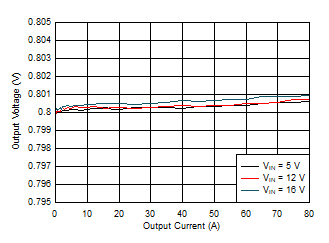

Figure 8-13 Load Regulation
VIN = 12 VVOUT = 0.8 VIOUT = 40 A
fSW = 550 kHz
Figure 8-15 Total-Loop Bode Plot
VIN = 12 VVOUT = 0.8 VIOUT = 40 A

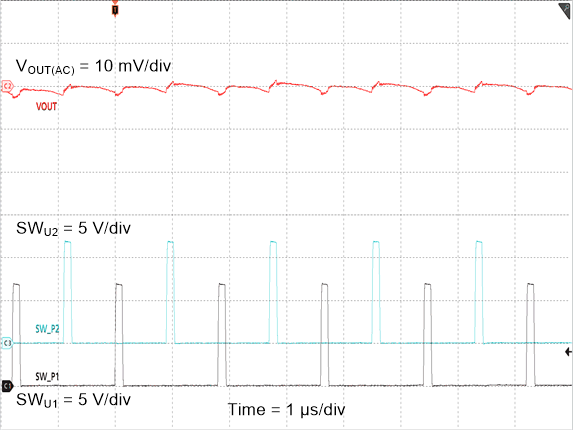

Figure 8-17 VOUT Steady-State Ripple
