Description

The TPS56623x are simple, easy-to-use, high-efficiency, 6-A synchronous buck converters in a QFN 9-pin 1.5-mm × 2.0-mm package.

The devices operate with wider supply input voltage ranging from 3 V to 18 V. The D-CAP3 control mode is adopted to provide a fast transient response, good line and load regulation, no requirement for external compensation, and support to low-ESR output capacitors.

The TPS566231 and TPS566231P operate in Eco-mode for high efficiency during light load operation. The devices are designed as the ULQ™ DC/DC converter, achieving 50-μA quiescent current to enable long battery life in low-power applications. The TPS566238 and TPS566238P operate in continuous current mode, which maintains lower output ripple during all load conditions.

The TPS566231 and TPS566238 soft-start time can be adjusted through the SS pin. The TPS566231P and TPS566238P indicate power good through the PG pin.

The TPS56623x can support up to 98% duty cycle operation, and integrate complete protection through OVP, OCP, UVLO, OTP, and UVP with hiccup. The devices are each available in a 9-pin 1.5-mm × 2.0-mm HotRod package. The junction temperature is specified from –40°C to 125°C.

Device Information
PART NUMBER

LIGHT LOAD MODE

PIN-9 DEFINITION
TPS566231Auto-skip modeSoft-start pin
TPS566238Continuous current modeSoft-start pin
TPS566231PAuto-skip modePower-good pin
TPS566238PContinuous current modePower-good pin
GUID-20230203-SS0I-K2RZ-BMXJ-GPVCPW91CNVX-low.svgTypical Application

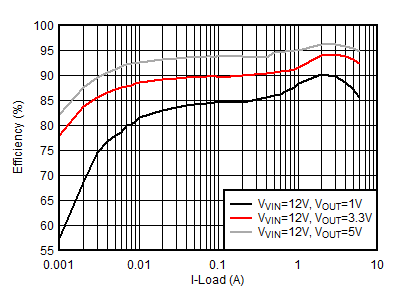

GUID-22F90316-A2B9-457E-98A9-E2F90EEBBD47-low.gifTPS566231 Efficiency vs Output Current
