Application Curves

Figure 7-2 through Figure 7-25 apply to the circuit of Figure 7-1. VIN = 12 V, TA = 25°C unless otherwise specified.

GUID-D3938889-6804-4E89-B8C5-386E2B896831-low.gifFigure 7-2 TPS566231 Efficiency Curve
GUID-66A7D734-A3A1-4C3E-A4E4-934688752F55-low.gifFigure 7-4 TPS566231 Load Regulation
GUID-D94C32B6-B7DF-497F-BE46-B0B454A4DEAA-low.gifFigure 7-6 TPS566231 FSW vs Output Load
IOUT = 6 A

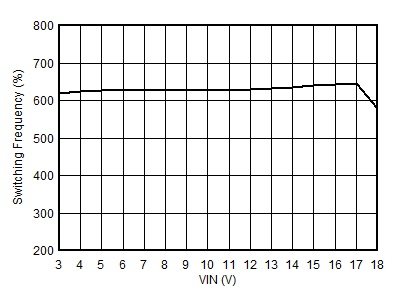

Figure 7-8 Switching Frequency vs Input Voltage
IOUT = 0.1 A

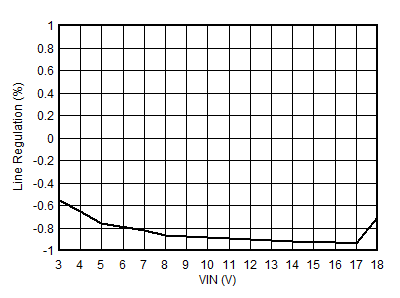

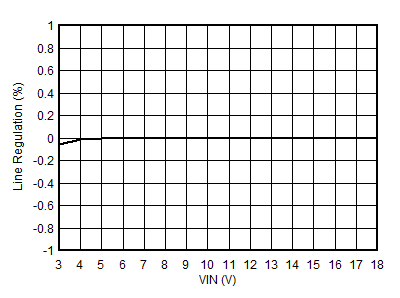

Figure 7-10 TPS566238 Line Regulation
IOUT = 0.01 A

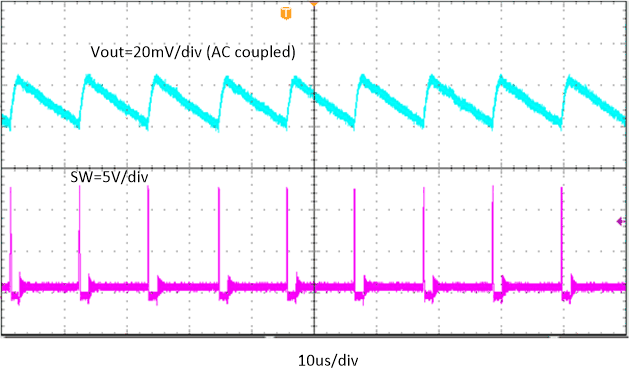

Figure 7-12 TPS566231 Output Voltage Ripple
GUID-B4F68E94-AB65-4A46-8122-7FB72E3E6D4F-low.gifFigure 7-14 Output Voltage Ripple, IOUT = 6 A
GUID-926233FE-79BF-41C7-889E-0CF3E332B9E5-low.gifFigure 7-16 Shutdown Through EN, IOUT = 3 A
GUID-11BCB862-55E6-4051-A082-877F6172F950-low.gifFigure 7-18 Start-Up with VIN Falling, IOUT = 3 A
0.1 A to 6 A Slew Rate = 2.5 A/μs
Figure 7-20 TPS566231 Transient Response
0.1 A to 6 A Slew Rate = 2.5 A/μs
Figure 7-22 TPS566238 Transient Response

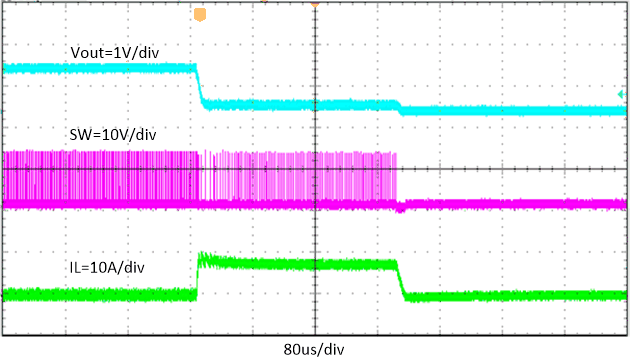

GUID-818E3BE5-1A61-41E8-BE7C-581F8F0BF8C0-low.gifFigure 7-24 TPS566238 Normal Operation to Output Hard Short
GUID-881689E9-B846-44FC-9AF8-E3DC8FC36CA5-low.gifFigure 7-3 TPS566238 Efficiency Curve
GUID-3BD4716F-6476-4A52-A6DD-C35D36C95740-low.gifFigure 7-5 TPS566238 Load Regulation
GUID-C429AFD9-F413-4586-95D1-A58BD6EAA0F7-low.gifFigure 7-7 TPS566238 FSW vs Output Load
IOUT = 0.1 A

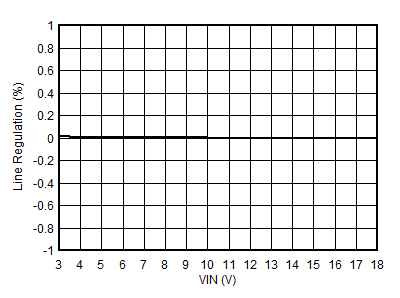

Figure 7-9 TPS566231 Line Regulation
IOUT = 6 A
Figure 7-11 Line Regulation
IOUT = 0.01 A

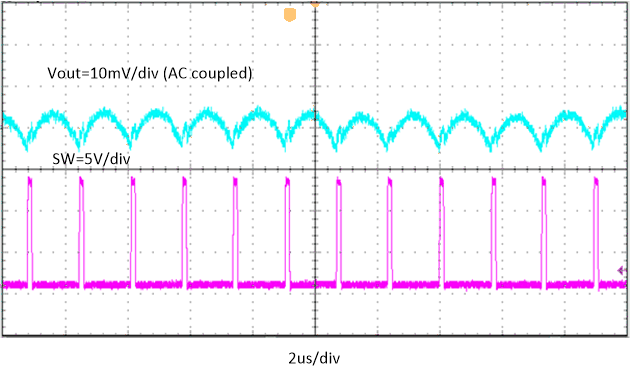

Figure 7-13 TPS566238 Output Voltage Ripple
GUID-A7DE4647-313B-4802-883A-B68B71FECB8D-low.gifFigure 7-15 Start-Up Through EN, IOUT = 3 A

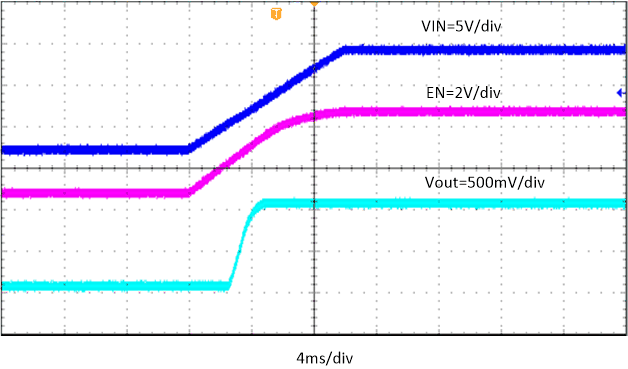

GUID-695B3C73-CEA6-4D47-ACFD-7A6645C55C75-low.gifFigure 7-17 Start-Up with VIN Rising, IOUT = 3 A
0.6 A to 5.4 A Slew Rate = 2.5 A/μs

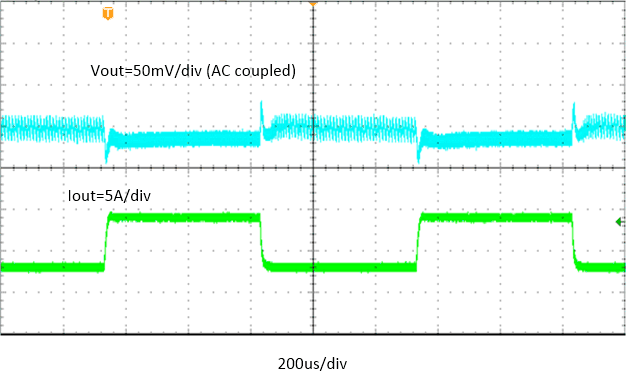

Figure 7-19 TPS566231 Transient Response
0.6 A to 5.4 A Slew Rate = 2.5 A/μs

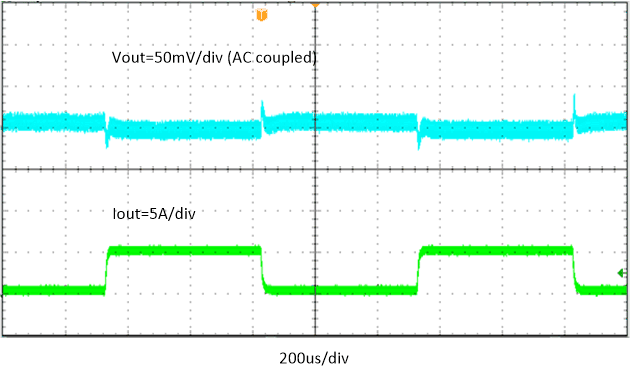

Figure 7-21 TPS566238 Transient Response

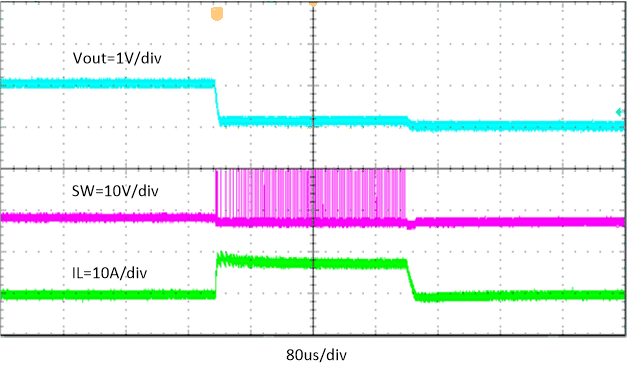

GUID-10761E81-462F-4137-BC11-D8BC9732F938-low.gifFigure 7-23 TPS566231 Normal Operation to Output Hard Short

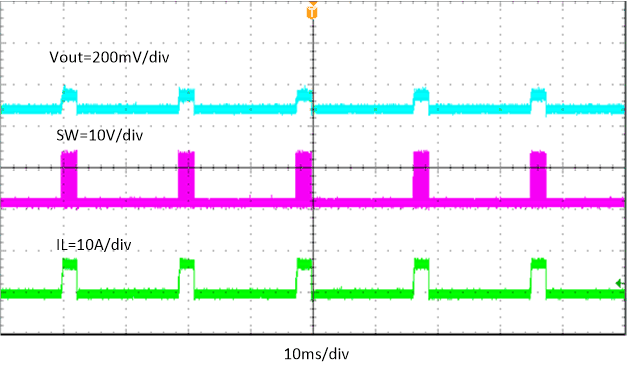

GUID-41F2746E-CC76-4B2D-A339-82A18A6487D7-low.gifFigure 7-25 Output Hard Short Hiccup
