3 Description

The TPS56C215 is a small monolithic 12A synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device integrates low RDS(on) power MOSFETs that enable high efficiency and offers ease-of-use with minimum external component count for space-conscious power systems. Competitive features include a very accurate reference voltage, fast load transient response, auto-skip mode operation for light load efficiency, adjustable current limit and no requirement for external compensation. A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS56C215 is available in a thermally enhanced, 18-pin, HotRod QFN package and is designed to operate from –40°C to 150°C junction temperature.

Package Information
PART NUMBERPACKAGE(1)PACKAGE SIZE(2)
TPS56C215RNN (VQFN-HR, 18)3.5mm × 3.5mm
(1) For more information, see Section 10.
(2) The package size (length × width) is a nominal value and includes pins, where applicable.

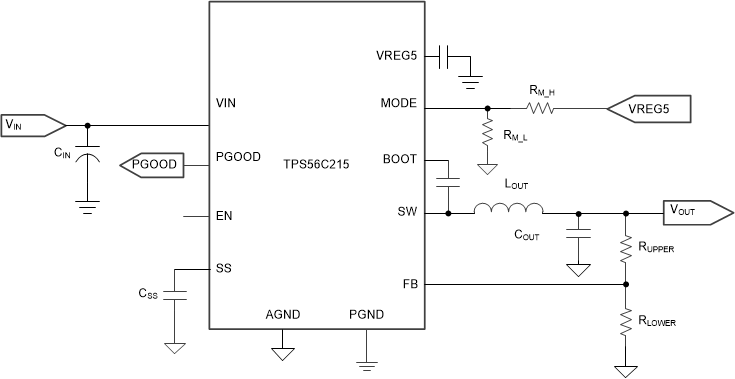

TPS56C215 Typical ApplicationTypical Application
TPS56C215 Efficiency vs Output CurrentEfficiency vs Output Current
