8.2.3 Application Curves

Figure 19 through Figure 34 apply to the circuit of Figure 18. VIN = 12 V. TA = 25°C unless otherwise specified.

TPS56C230 D000-Efficiency1.gif
1.
Figure 19. Efficiency Curve
TPS56C230 D033-Fswline1.gif
1.
IOUT = 12 A
Figure 21. Switching Frequency vs Input Voltage

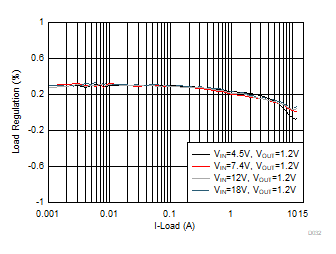

TPS56C230 D032-LoadRegulation.gif
1.
Figure 20. Load Regulation
TPS56C230 D034-Fswload1.gif
1.
Figure 22. Switching Frequency vs Output Load
TPS56C230 D035-LineReg1.gif
1.
IOUT=0.1A
Figure 23. Line Regulation
TPS56C230 fbd-03-slvsde4.gif
1.
IOUT = 6A
Figure 25. Start-Up Through EN
TPS56C230 fbd-01-slvsde4.gif
1.
IOUT = 6 A
Figure 27. Start Up Relative to VIN Rising
TPS56C230 fbd-05-slvsde4.gif
1.
IOUT = 0.1 A
Figure 29. Output Voltage Ripple
TPS56C230 fbd-07-slvsde4.gif
1.
1.2 A to 10.8 A Slew Rate=2.5A/us
Figure 31. Transient Response
TPS56C230 fbd-09-slvsde4.gif
1.
Figure 33. Normal Operation to Output Hard Short
TPS56C230 D036-LineReg2.gif
1.
IOUT=12A
Figure 24. Line Regulation
TPS56C230 fbd-04-slvsde4.gif
1.
IOUT = 6A
Figure 26. Shut-down Through EN
TPS56C230 fbd-02-slvsde4.gif
IOUT = 6 A
Figure 28. Shut Down Relative to VIN Falling
TPS56C230 fbd-06-slvsde4.gif
1.
IOUT = 12 A
Figure 30. Output Voltage Ripple
TPS56C230 fbd-08-slvsde4.gif
0 A to 12 A Slew Rate=2.5A/us
Figure 32. Transient Response
TPS56C230 fbd-10-slvsde4.gif
Figure 34. Output Hard Short Hiccup Protection
