11 Layout

11.1 Layout Guidelines

All capacitors must be soldered as close as possible to the IC. A PCB layout proposal for a two-layer board is shown in Figure 33. Connect all capacitors as close as possible to the circuit to achieve optimized output voltage ripple performance.

11.2 Layout Examples

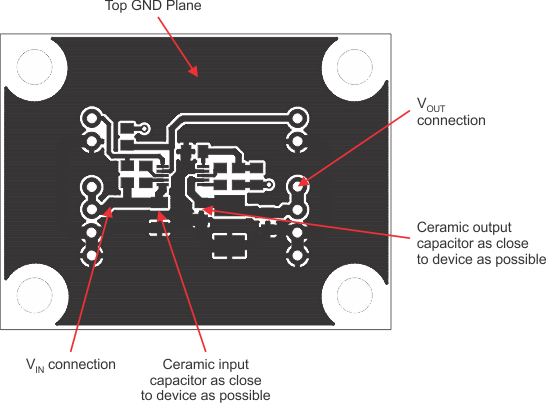

TPS60500 TPS60501 TPS60502 TPS60503 layoutexample1_b.gif Figure 33. Recommended PCB Layout for TPS6050x (Top Layer)

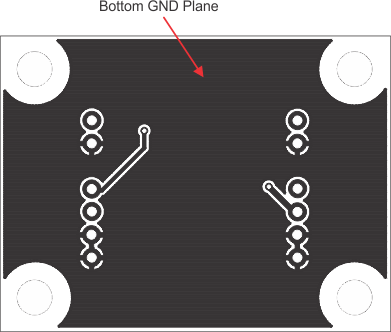

TPS60500 TPS60501 TPS60502 TPS60503 layoutexample2.gif Figure 34. Recommended PCB Layout for TPS6050x (Bottom Layer)

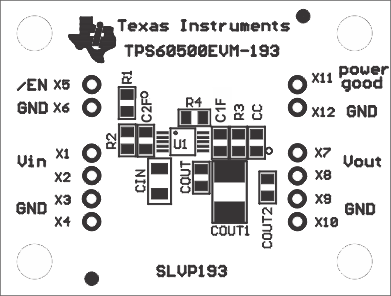

TPS60500 TPS60501 TPS60502 TPS60503 layoutexample1_a.gif Figure 35. Top Silkscreen
