Mode Selection and Device Configuration (MODE/S-CONF Pin)

The MODE/S-CONF pin is an input with two functions, which can be used to customize the device behavior in two ways:

  • Select the device mode (forced PWM or auto PFM/PWM operation) traditionally with a HIGH or LOW level.
  • Select the device configuration (switching frequency, internal and external feedback, output discharge, and PFM/PWM mode) by connecting a single resistor to this pin.

The device interprets this pin during its start-up sequence after the internal OTP readout and before it starts switching in soft start. If the device reads a HIGH or LOW level, dynamic mode change is active and PFM/PWM mode can be changed during operation. If the device reads a resistor value, there is no further interpretation during operation and the device mode or other configurations cannot be changed afterward.

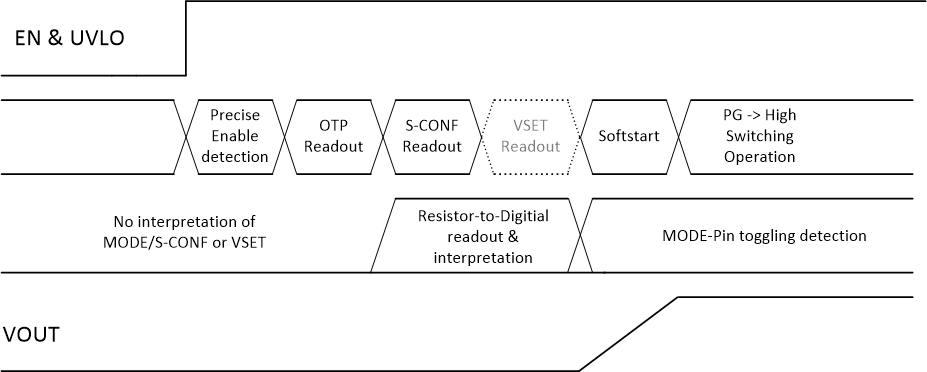

GUID-20210614-CA0I-LXCZ-MHP0-RTC03TBDSZNB-low.gif Figure 8-1 Interpretation of S-CONF and VSET Flow
Table 8-1 Smart-CONFIG Setting Table
# M ODE/S-CONF Level Or Resistor Value [Ω] #GUID-85CC9A7B-B11B-4406-BD40-AC167785450E/GUID-D7E038E4-7947-458D-904B-DC1D64F8CBE8 FB/VSET Pin FSW (MHz) Output Discharge Mode (Auto Or Forced PWM) Dynamic Mode Change
Setting Options by Level
1 GND external FB up to 2.5#GUID-85CC9A7B-B11B-4406-BD40-AC167785450E/GUID-032A184E-4B4E-43A9-8165-FE617EF3148D yes Auto PFM/PWM with AEE Active
2 HIGH (> 1.8 V) external FB 2.5 yes Forced PWM
Setting Options by Resistor
3 7.50 k external FB up to 2.5#GUID-85CC9A7B-B11B-4406-BD40-AC167785450E/GUID-032A184E-4B4E-43A9-8165-FE617EF3148D no Auto PFM/PWM with AEE not active
4 9.31 k external FB 2.5 no Forced PWM
5 11.50 k external FB 1 yes Auto PFM/PWM
6 14.30 k external FB 1 yes Forced PWM
7 17.80 k external FB 1 no Auto PFM/PWM
8 22.10 k external FB 1 no Forced PWM
9 27.40 k VSET up to 2.5#GUID-85CC9A7B-B11B-4406-BD40-AC167785450E/GUID-032A184E-4B4E-43A9-8165-FE617EF3148D yes Auto PFM/PWM with AEE
10 34.00 k VSET 2.5 yes Forced PWM
11 42.20 k VSET up to 2.5#GUID-85CC9A7B-B11B-4406-BD40-AC167785450E/GUID-032A184E-4B4E-43A9-8165-FE617EF3148D no Auto PFM/PWM with AEE
12 52.30 k VSET 2.5 no Forced PWM
13 64.90 k VSET 1 yes Auto PFM/PWM
14 80.60 k VSET 1 yes Forced PWM
15 100.00 k VSET 1 no Auto PFM/PWM
16 124.00 k VSET 1 no Forced PWM
E96 Resistor Series, 1% accuracy, temperature coefficient better or equal than ±200 ppm/°C
FSW varies based on VIN and VOUT. See GUID-E12DF716-0036-466E-B205-FD9877073C8F.html#GUID-E12DF716-0036-466E-B205-FD9877073C8F for more details.
