9.4.1.4 Buck Operation

When VI is greater than VO (and the voltages are not close enough to trigger buck-boost operation), the TPS63802 operates in buck mode where the buck high-side and low-side switches are active. The boost high-side switch is always turned on and the boost low-side switch is always turned off. This lets the TPS63802 operate as a classical buck converter.

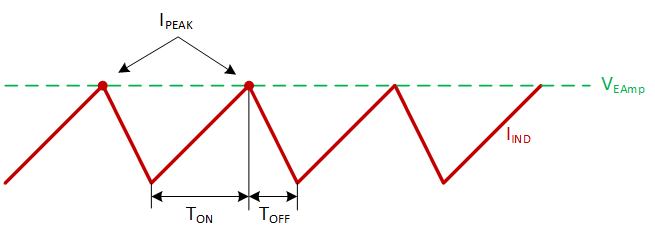

GUID-DADA2C82-7F2C-4C8F-8CFD-29C0E5608FF2-low.gifFigure 9-9 Peak-Current Buck Operation
