9.4.1.1 Reverse Current Operation, Negative Current

When the TPS63802 is forced to PWM operation (MODE = HIGH), the device current can flow in reverse direction. This happens by the negative current capability of the TPS63802 . The error amplifier provides a peak-current target (voltage that is translated into an equivalent current, see Figure 9-1), even if the target has a negative value. The maximum average current is even more negative than the peak current.

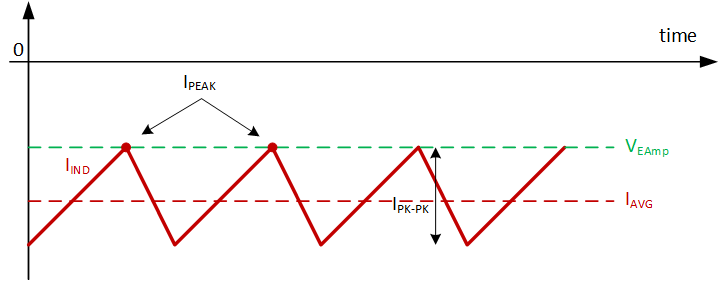

GUID-5A8C06BF-0D76-4A1D-AE62-31ED3EF07C01-low.gifFigure 9-6 Peak-Current Operation, Reverse Current
