6.3.5 Dynamic Voltage Scaling

The device has a dynamic voltage scaling function to switch between the two output voltage settings. When the SEL pin changes state, the output voltage ramps to the new value in 100-mV steps. The duration of each step is 125 µs (see Figure 6-10).

The device does not actively discharge the output capacitor when the output voltage ramps to a lower level. This leads to a longer output voltage settling time when light load is applied (see Figure 6-11). The settling time can be calculated with Equation 3.

Equation 3. TPS63901
TPS63901 Dynamic Voltage Scaling with High LoadFigure 6-10 Dynamic Voltage Scaling with High Load

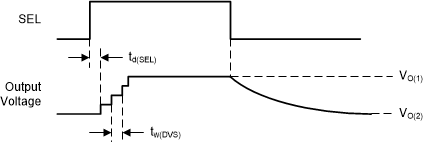

TPS63901 Dynamic Voltage Scaling with Light LoadFigure 6-11 Dynamic Voltage Scaling with Light Load
