6.7 Typical Characteristics for Buck 2

TA = 25°C, VIN = 12 V, VO = 1.8 V, L = 4.7 µH, CO = 68 µF, ƒSW = 500 Hz (unless otherwise noted)

L = 4.7 µH, 27 mΩ

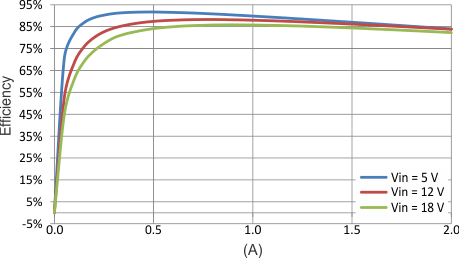

Figure 6-7 Efficiency, Forced PWM
L = 4.7 µH, 27 mΩ
Figure 6-9 Efficiency, LOW_P Mode, 0 to 500 mA
GUID-AE8FD58C-8FAA-465C-A662-840B448EE485-low.gifFigure 6-11 Line Regulation, Load = 1 A
L = 4.7 µH, 27 mΩ

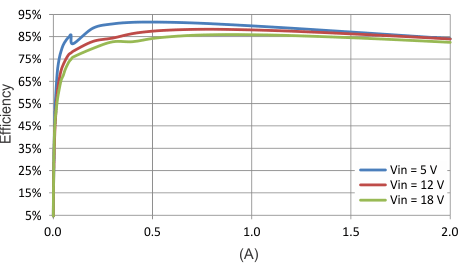

Figure 6-8 Efficiency, LOW_P Mode

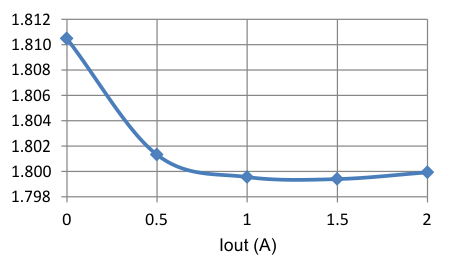

GUID-DAE34CE5-E256-4198-A51A-420C5B01AC12-low.gifFigure 6-10 Load Regulation, 25°C, 1% 100-PPM Resistor

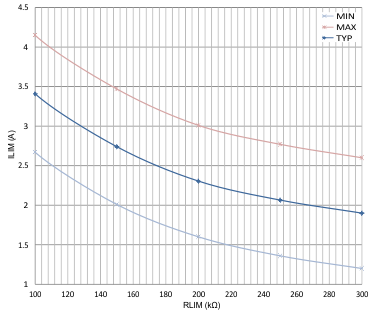

GUID-A43A9F07-F073-45F4-A404-EF35761E2D0B-low.gifFigure 6-12 Current Limit VIN = 12 V, ƒSW = 500 kHz
