6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
Buck regulator VIN, VIN_D –0.3 45 V
BOOT –0.3 50 V
PH –1
–2 for 30 ns
45 V
VSENSE –0.3 5.5 V
Control IGN_EN –0.3 45 V
EN –0.3 5.5 V
3.3VSENSE –0.3 5.5 V
1.2VSENSE –0.3 5.5 V
RT/CLK –0.3 5.5 V
VREG –0.3 8 V
Output 3.3VDRIVE –0.3 8 V
1.2VDRIVE –0.3 8 V
nRST –0.3 5.5 V
IGN_ST –0.3 5.5 V
SS –0.3 7 V
DELAY –0.3 7 V
COMP –0.3 7 V
BOOT_LDO –0.3 9 V
5V –0.3 7 V
5VS –1 45 V
Temperature Operating junction, TJ –40 150 °C
Operating ambient temperature, TA –40 125 °C
Storage, TS –55 165 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±2000 V
Charged-device model (CDM), per AEC Q100-011 All pins ±500
Corner pins (1, 12, 13, and 24) ±750
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VIN, VIN_D 5.6 40 V
BOOT 5.6 48 V
PH –1 40 V
IGN_EN 0 40 V
EN, VSENSE, 3.3VSENSE, 1.2VSENSE, RT/CLK, nRST, IGN_ST 0 5.25 V
VREG, 3.3VDRIVE, 1.2VDRIVE 0 7.5 V
SS, DELAY, COMP 0 6.5 V
BOOT_LDO 0 8.1 V

6.4 Thermal Information

THERMAL METRIC(1) TPS65301-Q1 UNIT
PWP (HTSSOP) RHF (VQFN)
24 PINS 24 PINS
RθJA Junction-to-ambient thermal resistance 33.6 30.3 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 16.6 30.5 °C/W
RθJB Junction-to-board thermal resistance 14.5 8.7 °C/W
ψJT Junction-to-top characterization parameter 0.4 0.3 °C/W
ψJB Junction-to-board characterization parameter 14.3 8.8 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 1.3 1.6 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

6.5 DC Characteristics

VIN = VIN_D = 6 V to 27 V, IGN_EN = VIN, TJ = –40°C to 150°C, unless otherwise noted
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VIN, VIN_D (Input Power Supply)
VIN, VIN_D Supply voltage on VIN, line Normal mode, after initial startup 5.6 14 40 V
Iq-Normal Current normal mode Open-loop test 5.57 mA
ISD VIN Shut down IGN = 0 V, VIN = 12 V, TA = –40°C to 125°C 2.2 15 µA
ISD VIND IGN = 0 V, VIN = 12 V, TA = –40°C to 125°C 2.2 15
IGN_EN (Ignition Input)
VIGN_EN Input voltage range Input into IGN_EN pin 14 40 V
VIH Input high Enable device to be ON (rising signal) 3.16 3.6 V
VIL Input low Enable device to be OFF (falling signal) 2.2 3.03 V
IIH Input high Enable device to be ON, VIGN_EN = 18 V 23.7 50 µA
Enable device to be ON, VIGN_EN = 3.7 V 4 7
EN (Logic Level Enable)
VIH Input high Enable device to be ON (rising signal) 1.7 2.3 V
VIL Input low Enable device to be OFF (falling signal) 0.7 1.53 V
Switch-Mode Output 5.45 V
VREG Regulator output internal resistor network Fixed output based on internal resistor network 5.30 5.45 5.70 V
CO Output capacitor for 5.45 V ESR = 0.001 Ω to 100 mΩ; large output capacitance may be required for load transients 10 µF
rds(on) Internal switch resistance Measured across VIN_D and PH pins, IVREG = 1 A 0.3 Ω
IO-CL Switch current limit VIN = 12 V 1.2 2 3 A
tON-min Minimum ON time 40 ns
Dmax Maximum duty cycle 97%
VSENSE (Internal Reference Voltage)
VREG ref Internal reference voltage 1.954 2 2.046 V
SS (Soft-Start Timer for Switch-Mode Converter)
ISS Soft-start source current Css = 0.001 µF to 0.01 µF 40 50 60 µA
IGN_ST (Ignition Input Status)
VOL Output low Output asserted low when IGN_EN < 2.2 V, IOL = 1 mA 0.056 0.4 V
IIH Leakage test IGN_ST = 5 V 0.05 2 µA
5V (5-V Linear Regulator)
5VO Output voltage IO = 1 mA, VREG = 5.45 V 4.9 5 5.1 V
∆VO-Line Line regulation 5.15 V < VREG < 5.45 V, IO = 1 mA, VIN = 12 V 10 20 mV
∆VO-Load Load regulation 1 mA < IO < 200 mA, VREG = 5.45 V, VIN = 12 V 10 30 mV
VDO Dropout voltage IO = 150 mA, measure VREG when VO(nom) – 0.1 V, then VDO = VREG – (5VO – 0.1) V, VREG > 5 V 0.15 0.26 V
I5V-CL Current limit 5VO = 0.8 x 5VO (nom) 350 1080 mA
CO Output capacitor ESR = 0.001 Ω to 2 Ω. Larger output capacitance may be required for load transients. 1 2.2 10 µF
PSRR Power-supply rejection ratio f = 100 Hz, VREG = 5.45 V, IO = 100 mA, VIN = 12 V 45 60 75 dB
Vsoft-start Soft start on enable cycle 5VO = 0 V (initially) with fsw = 2.5 MHz 13 ms
3.3-V Linear Regulator Controller (3.3VSENSE)
3.3VO Output voltage IO = 5 mA, Vnpn_power input = 5.3 V 3.234 3.3 3.366 V
∆3.3VO-Line Line regulation 3.8 V < Vnpn_power input < 7 V (with nRST not triggered) 1 10 mV
∆3.3VO-Load Load regulation 5 mA < IO < 550 mA 7.5 30 mV
CO Output capacitor for 3.3 V ESR = 0.001 Ω to 2 Ω. Large output capacitance may be required for load transients. 1 4.7 10 µF
PSRR Power-supply rejection ratio f = 100 Hz, VREG = 5.45 V, IO = 200 mA, VIN = 12 V 45 60 75 dB
tss Soft-start time 3.3VO = 0 V (initially) with fsw = 2.5 MHz 12.3 ms
3.3VDRIVE (Example: Switch Control Output)
IOH Base drive current. NPN turn ON 3.3VDRIVE – 3.3VSENSE = 1 V 10 28 50 mA
IOL NPN turn off 3.3VDRIVE – 3.3VSENSE at 0.2 V 0.1 0.412 mA
1.2-V Linear Regulator Controller (1.2VSENSE)
1.2VO Output voltage IO = 5 mA, Vnpn_power input = 5.3 V 1.176 1.2 1.224 V
∆1.2VO-Line Line regulation 3.25 V < Vnpn_power input < 7 V (with nRST not triggered) 1 10 mV
∆1.2VO-Load Load regulation 5 mA < IO < 350 mA 5 15 mV
CO Output capacitor for 1.2 V ESR = 0.001 Ω to 100 mΩ. Large output capacitance may be required for load transients. 8 10 12 µF
PSRR Power-supply rejection ratio f = 100 Hz, VREG = 6 V, IO = 200 mA, VIN = 12 V 45 60 75 dB
tss Soft-start time 1.2VO = 0 V (initially) with fsw = 2.5 MHz 8.5 ms
1.2VDRIVE (Example: Switch Control Output)
IOH Base drive current. NPN turn ON 1.2VDRIVE – 1.2VSENSE = 1 V 10 27 50 mA
IOL NPN turn off 1.2VDRIVE – 1.2VSENSE at 0.2 V 0.1 0.47 mA
5VS (Protected Sensor Supply Linear Regulator)
VSENSOR Output tolerant range VSENSOR output shorted fault conditions –1 VIN V
VSENSOR Output voltage IO = 1 mA to 100 mA, VREG = 5.45 V 4.9 5 5.1 V
I5VS_SC Short circuit current 5VS = 45 V 2.25 mA
I5VS Output current VREG = 5.45 V 150 mA
∆5VSLOAD Load regulation 1 mA < I5VS < 75 mA, VREG = 5.45 V, VIN = 12 V 15 mV
VDO Drop out voltage IO = 150 mA, Measure VREG when 5VS (nom) – 0.1 V
Then VDO = VREG – (5VS – 0.1) V, VREG > 5.1 V
0.4 V
CO Output capacitor for protected 5-V supply ESR = 0.001 Ω to 2 Ω, Larger output capacitance may be required for load transients 1 10 µF
I5VS-CL Current limit 5VS = 0.8 x 5VS (nom) 180 320 650 mA
ILkg Leakage current EN_LIN_REG = 0 V with VIN = 14 V 5 µA
PSRR Power-supply rejection ratio f = 100 Hz, VREG = 6 V, I5VS = 75 mA, VIN = 12 V 60 dB
DELAY (Power-On-Reset Delay)
VThreshold Threshold voltage Threshold to release nRST high 1.3 2.05 2.6 V
ICharge Capacitor charging current 1.4 2 2.6 µA
nRST (Reset Indicator)
VOL Output low Reset asserted due to falling VREG or 3.3 VO or 1.2 VO output voltages, IOL = 1 mA 0 0.16 0.4 V
tnRSTdly Filter time Delay before nRST is asserted low 11 µs
VTH_VREG Trigger nRST for VREG output VREG ramp down 0.845 0.875 0.905 VREG
Trigger nRST for 3.3 VO VREG ramp down 0.9 0.93 0.96 3.3 VO
Trigger nRST for 1.2 VO VREG ramp down 0.9 0.93 0.96 1.2 VO
IIH Leakage test Reset = 5 V 0.07 2 µA
RT/CLK (Oscillator Setting of External Clock Input)
fsw Switching freq using RT mode 2 3 MHz
Switching freq using CLK mode 2 3
Minimum clock input pulse duration 40 ns
Internal oscillator frequency Switching frequency tolerance for clock –14% 14%
External clock input –20% 10%
VIH Input high 2.3 V
VIL Input low 0.6 V

6.6 Typical Characteristics

TPS65301-Q1 C002_SLVSC10.png

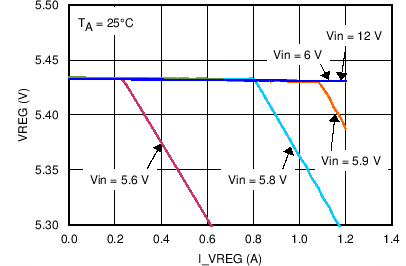

Figure 1. Output Voltage vs Output Current
TPS65301-Q1 G003_SLVSBB6.gif
Figure 3. VSENSE Reference Voltage vs Temperature
TPS65301-Q1 G004_SLVSBB6.gif
Figure 5. Quiescent Current vs Temperature
TPS65301-Q1 G002_SLVSBB6.gif
Figure 2. Buck Current Limit vs Temperature
TPS65301-Q1 G005_SLVSBB6.gif
Figure 4. Current Consumption IIN vs Temperature

6.6.1 5-V Linear Regulator (5 VO)

TPS65301-Q1 G006_SLVSBB6.png Figure 6. Dropout Voltage vs Temperature
TPS65301-Q1 G007_SLVSBB6.gif Figure 7. Output Voltage 5VO vs Temperature

6.6.2 3.3-V Linear Regulator Controller (3.3 VO)

TPS65301-Q1 G008_SLVSBB6.gif Figure 8. Output Base Drive vs Temperature
TPS65301-Q1 G009_SLVSBB6.gif Figure 9. 3.3VSENSE vs Temperature

6.6.3 1.2-V Linear Regulator Controller (1.2 VO)

TPS65301-Q1 G010_SLVSBB6.gif Figure 10. Output Base Drive vs Temperature
TPS65301-Q1 G011_SLVSC10.gif Figure 11. 1.2VSENSE vs Temperature
