3 Terminal Configuration and Functions

3.1 Pin Diagram

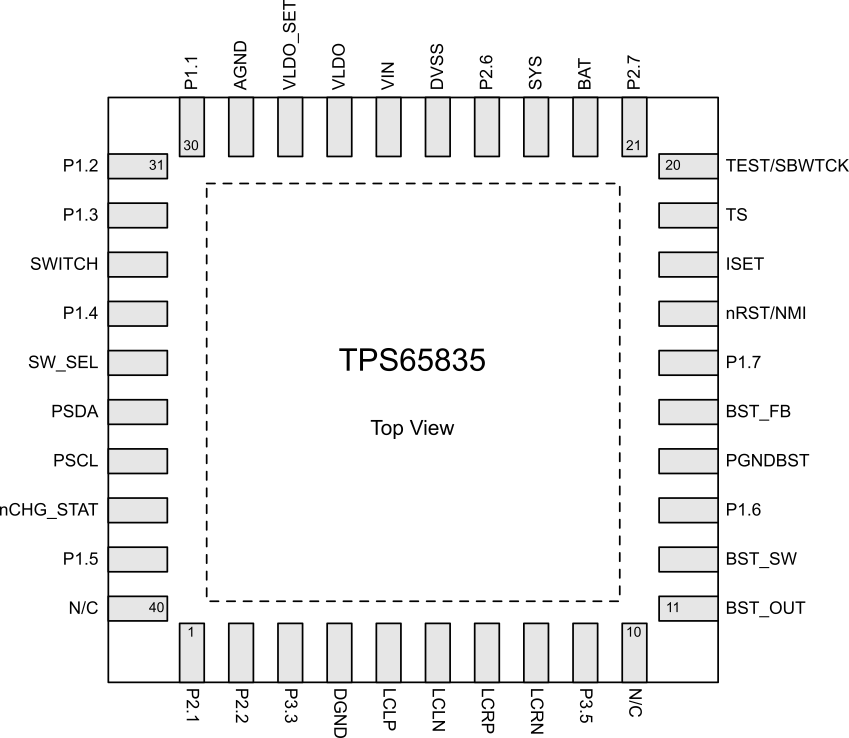

TPS65835 TPS65835_Pinout.gif
A. Pins 10 and 40 = N/C. No internal connection; connect to main system ground.
Figure 3-1 40-Pin RKP VQFN (Top View)

3.2 Pin Functions

Table 3-1 Pin Functions

PIN I/O DESCRIPTION
NO. NAME
POWER MANAGEMENT CORE (PMIC)
4 DGND - PMIC Digital Ground(2)
5 LCLP O H-Bridge Output for Left LC Shutter, Positive Terminal
6 LCLN O H-Bridge Output for Left LC Shutter, Negative Terminal
7 LCRP O H-Bridge Output for Right LC Shutter, Positive Terminal
8 LCRN O H-Bridge Output for Right LC Shutter, Negative Terminal
11 BST_OUT O Boost Output
12 BST_SW I Boost Switch Node
14 PGNDBST — PMIC Boost Power Ground(2)
15 BST_FB I Boost Feedback Node
18 ISET I/O Fast-Charge Current Setting Resistor
19 TS I Pin for 10-kΩ NTC Thermistor Connection
FLOAT IF THERMISTOR / TS FUNCTION IS NOT USED
22 BAT I/O Charger Power Stage Output and Battery Voltage Sense Input
23 SYS O Output Terminal to System
26 VIN I AC or USB Adapter Input
27 VLDO O LDO Output
28 VLDO_SET I Sets LDO Output Voltage (see Table 5-2)
29 AGND — PMIC Analog Ground(2)
33 SWITCH I Switch Input for Device Power On/Off
35 SW_SEL I Selects Type of Switch Connected to SWITCH Pin (see Table 5-6)
36 PSDA I/O I2C Data Pin (only used for TI debug and test)
GROUND PIN IN APPLICATION
37 PSCL I/O I2C Clock Pin (only used for TI debug and test)
GROUND PIN IN APPLICATION
38 nCHG_STAT O Open-drain Output, Charger Status Indication
CONNECT TO GROUND IF FUNCTION IS NOT USED
MSP430 MICROCONTROLLER
1 P2.1/
TA1.1		 I/O General-purpose digital I/O pin
Timer1_A, capture: CCI1A input, compare: Out1 output
2 P2.2/
TA1.1		 I/O General-purpose digital I/O pin
Timer1_A, capture: CCI1B input, compare: Out1 output
3 P3.3/
TA1.2		 I/O General-purpose digital I/O pin
Timer1_A, compare: Out2 output
9 P3.5/
TA0.1		 I/O General-purpose digital I/O pin
Timer0_A, compare: Out0 output
13 P1.6/
TA0.1/
A6/
CA6/
UCB0SOMI/
UCB0SCL/
TDI/TCLK		 I/O General-purpose digital I/O pin
Timer0_A, compare: Out1 output
ADC10 analog input A6
Comparator_A+, CA6 input
USCI_B0 slave out/master in SPI mode
USCI_B0 SCL I2C clock in I2C mode
JTAG test data input or test clock input during programming and test
16 P1.7/
A7/
CA7/
CAOUT/
UCB0SIMO/
UCB0SDA/
TDO/TDI		 I/O General-purpose digital I/O pin
ADC10 analog input A7
Comparator_A+, CA7 input
Comparator_A+, output
USCI_B0 slave in/master out in SPI mode
USCI_B0 SDA I2C data in I2C mode
JTAG test data output terminal or test data input during programming and test(3)
17 nRST/
NMI/
SBWTDIO		 I/O Reset
Nonmaskable interrupt input
Spy-Bi-Wire test data input/output during programming and test
20 TEST/
SBWTCK		 I Selects test mode for JTAG pins on Port 1. The device protection fuse is connected to TEST.
Spy-Bi-Wire test clock input during programming and test
21 P2.7/
XOUT		 I/O General-purpose digital I/O pin
Output terminal of crystal oscillator(1))
24 P2.6/
XIN/
TA0.1		 I/O General-purpose digital I/O pin
XIN, Input terminal of crystal oscillator
TA0.1, Timer0_A, compare: Out1 output
25 DVSS — MSP430 Ground reference(2)
30 P1.1/
TA0.0/
UCA0RXD/
UCA0SOMI/
A1/
CA1		 I/O General-purpose digital I/O pin
Timer0_A, capture: CCI0A input, compare: Out0 output
USCI_A0 receive data input in UART mode
USCI_A0 slave data out/master in SPI mode
ADC10 analog input A1
Comparator_A+, CA1 input
31 P1.2/
TA0.1/
UCA0TXD/
UCA0SIMO/
A2/
CA2		 I/O General-purpose digital I/O pin
Timer0_A, capture: CCI1A input, compare: Out1 output
USCI_A0 transmit data output in UART mode
USCI_A0 slave data in/master out in SPI mode
ADC10 analog input A2
Comparator_A+, CA2 input
32 P1.3/
ADC10CLK/
A3
VREF-/VEREF-/
CA3/
CAOUT		 I/O General-purpose digital I/O pin
ADC10, conversion clock output
ADC10 analog input A3
ADC10 negative reference voltage
Comparator_A+, CA3 input
Comparator_A+, output
34 P1.4/
SMCLK/
UCB0STE
UCA0CLK/
A4
VREF+/VEREF+/
CA4
TCK		 I/O General-purpose digital I/O pin
SMCLK signal output
USCI_B0 slave transmit enable
USCI_A0 clock input/output
ADC10 analog input A4
ADC10 positive reference voltage
Comparator_A+, CA4 input
JTAG test clock, input terminal for device programming and test
39 P1.5/
TA0.0/
UCB0CLK/
UCA0STE/
A5/
CA5/
TMS		 I/O General-purpose digital I/O pin
Timer0_A, compare: Out0 output
USCI_B0 clock input/output
USCI_A0 slave transmit enable
ADC10 analog input A5
Comparator_A+, CA5 input
JTAG test mode select, input terminal for device programming and test
MISCELLANEOUS AND PACKAGE
10, 40 N/C — All N/C pins are not connected internally (package to die). They should be connected to the main system ground.
41 Thermal PAD — There is an internal electrical connection between the exposed thermal pad and the AGND ground pin of the device. The thermal pad must be connected to the same potential as the AGND pin on the printed circuit board. Do not use the thermal pad as the primary ground input for the device. AGND pin must be connected to ground at all times.
(1) If P2.7 is used as an input, excess current will flow until P2SEL.7 is cleared. This is due to the oscillator output driver connection to this pad after reset.
(2) MSP430 ground and grounds for PMIC (Power Management Core) are connected internally.
(3) TDO or TDI is selected via JTAG instruction.
