6 Parameter Measurement Information

6.1 I2C Timing Diagrams

TPS659121 TPS659122 serial_timing_diag_FS_Mode.gif Figure 6-1 Serial Interface Timing Diagram for FS-Mode
TPS659121 TPS659122 serial_timing_diag_HS_Mode.gif
A. First rising edge of the SCLH signal after Sr and after each acknowledge bit.

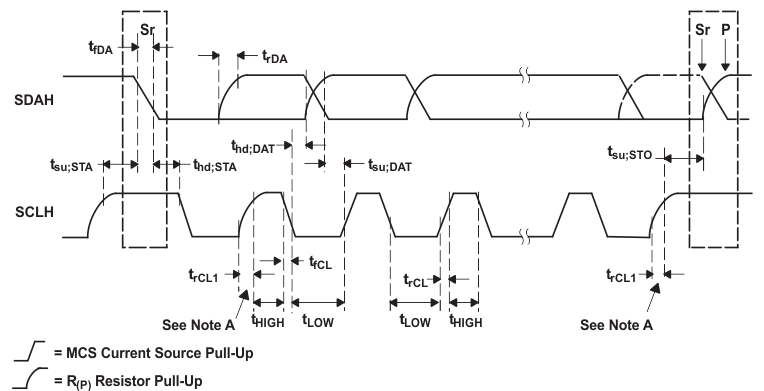

Figure 6-2 Serial Interface Timing Diagram for HS-Mode

6.2 SPI Timing Diagram

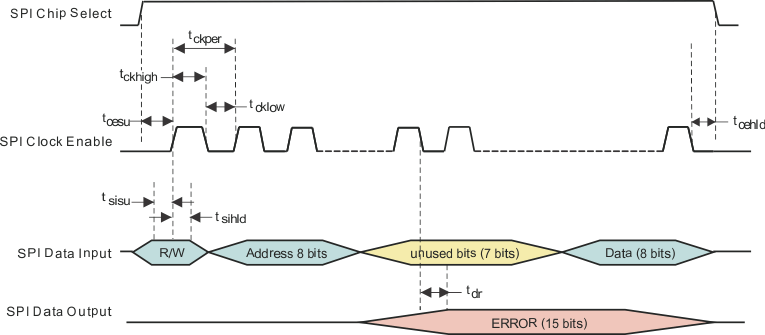

TPS659121 TPS659122 SPItiming.gif Figure 6-3 SPI Interface Timing
