5.12.1.3 HS Mode Protocol

When the bus is idle, the SDA and SCL lines are pulled high by the pullup devices.

The master generates a START condition followed by a valid serial byte containing the HS master code, 00001XXX. This transmission is made in F/S mode at no more than 400 kbps. No device is allowed to acknowledge the HS master code, but all devices must recognize it and switch the internal setting to support 3.4-Mbps operation.

The master then generates a REPEATED START condition (a REPEATED START condition has the same timing as the START condition). After the REPEATED START condition, the protocol is the same as F/S mode, except that transmission speeds up to 3.4 Mbps are allowed. A STOP condition ends the HS mode and switches all the internal settings of the slave devices to support F/S mode. Instead of using a STOP condition, REPEATED START conditions are used to secure the bus in HS mode.

Attempting to read data from register addresses not listed in this section results in a read out of 0xFF.

TPS65916 START_and_STOP_Conditions_SLVSCO4.gifFigure 5-17 START and STOP Conditions

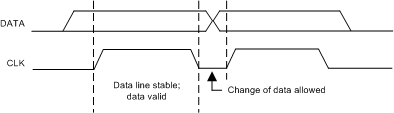

TPS65916 Bit_Transfer_On_the_Serial_Interface_SLVSCO4.gifFigure 5-18 Bit Transfer on the Serial Interface
TPS65916 Acknowledge_On_the_I2C_Bus_SLVSCO4.gifFigure 5-19 Acknowledge on the I2C Bus

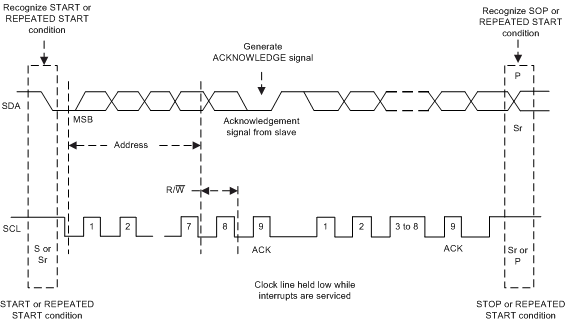

TPS65916 Bus_Protocol_SLVSCO4.gifFigure 5-20 Bus Protocol
