9.3.3.21 C_CC1 and C_CC2 Power Configuration and Power Delivery

The C_CC1 and C_CC2 pins are used to deliver power to active circuitry inside a connected cable and output USB-PD data to the cable and connected device. Figure 9-11 shows the C_CC1, and C_CC2 outputs to the port. Only one of these pins will be used to deliver power at a time depending on the cable orientation. The other pin will be used to transmit USB-PD data through the cable to a connected device.

Figure 9-28 shows a high-level flow of connecting these pins based on the cable orientation. See the Section 9.3.2 section for more detailed information on plug and orientation detection.

GUID-67130216-D96E-4ABE-9748-7EB5D15DAC56-low.gifFigure 9-28 Port C_CC and VCONN Connection Flow

Figure 9-29 and Figure 9-30 show the two paths from PP_CABLE to the C_CCn pins. When one C_CCn pin is powered from PP_CABLE, the other is connected to the USB-PD BMC modem. The red line shows the power path and the green line shows the data path.

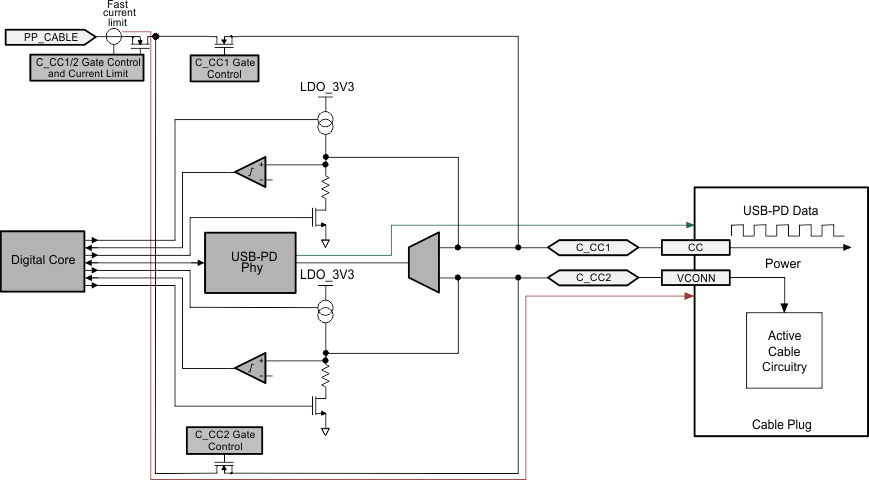

GUID-6AFFCBBA-CD0D-451F-9861-DD4288B495C6-low.gifFigure 9-29 Port C_CC1 and C_CC2 Normal Orientation Power from PP_CABLE
GUID-15EBF5CF-556B-47FF-AB88-547041910A44-low.gifFigure 9-30 Port C_CC1 and C_CC2 Reverse Orientation Power from PP_CABLE
