9.3.6 Digital Core

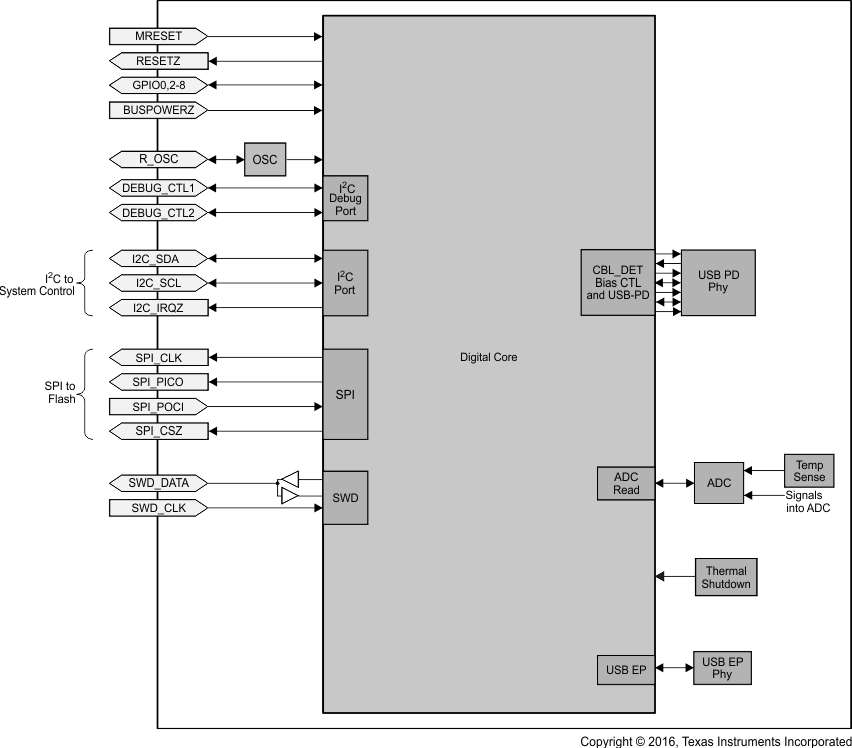

Figure 9-41 shows a simplified block diagram of the digital core. This diagram shows the interface between the digital and analog portions of the TPS65981.

GUID-DBE1C9C2-8C96-447E-BD6C-3CDFC38B9543-low.gifFigure 9-41 Digital Core Block Diagram
