9.5.2.4 Unique Address Interface

The Unique Address Interface allows for complex interaction between an I2C master and a single TPS65981. The I2C Slave sub-address is used to receive or respond to Host Interface protocol commands. Figure 9-61 and Figure 9-62 show the write and read protocol for the I2C slave interface, and a key is included in Figure 9-63 to explain the terminology used. The key to the protocol diagrams is in the SMBus Specification and is repeated here in part.

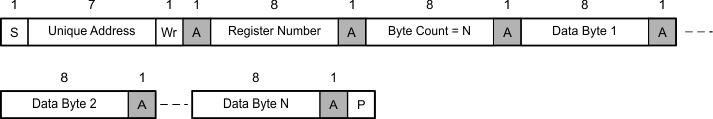

GUID-DDE5F2FA-18CE-4DF2-BB08-2AE3E029C28B-low.gifFigure 9-61 I2C Unique Address Write Register Protocol
GUID-1F8B3807-A2FC-448D-8B81-9872FF001B75-low.gifFigure 9-62 I2C Unique Address Read Register Protocol

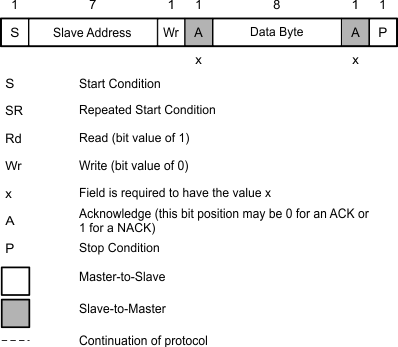

GUID-55411D32-38CA-4E8F-B561-F53C092280C7-low.gifFigure 9-63 I2C Read/Write Protocol Key
