9.3.1.1 USB-PD Encoding and Signaling

Figure 9-2 illustrates the high-level block diagram of the baseband USB-PD transmitter. Figure 9-3 illustrates the high-level block diagram of the baseband USB-PD receiver.

GUID-3B746DE8-05B8-479A-9F36-5E5843029CFD-low.gifFigure 9-2 USB-PD Baseband Transmitter Block Diagram

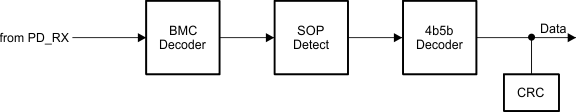

GUID-E8DDD00F-F59E-4232-8103-FEE56D7AF617-low.gifFigure 9-3 USB-PD Baseband Receiver Block Diagram

The USB-PD baseband signal is driven on the C_CCn pins with a tri-state driver. The tri-state driver is slew rate limited to reduce the high frequency components imparted on the cable and to avoid interference with frequencies used for communication.
