9.3.17.6 IOBUF_GPIOHSSWD

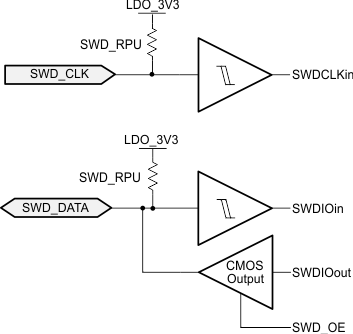

Figure 9-51 shows the I/O buffers for the SWD interface. The CLK input path is a comparator with a pull-up SWD_RPU on the pin. The data I/O consists of an identical input structure as the CLK input but with a tri-state CMOS output driver.

GUID-82C994F3-04D9-45D9-9D72-116E634D1ABB-low.gifFigure 9-51 IOBUF_GPIOHSSWD
