9.3.3.23 PP_CABLE to C_CC1 and C_CC2 Current Limit

The PP_CABLE to C_CC1 and C_CC2 share current limiting through a single FET on the PP_CABLE side of the switch. The current limit ILIMPPCC is adjustable between two levels. When the current exceeds ILIMPPCC, the current-limit circuit activates. Depending on the severity of the over-current condition, the transient response will react in one of two ways: Figure 9-31 and Figure 9-32 show the approximate response time and clamping characteristics of the circuit for a hard short while Figure 9-33 shows the approximate response time and clamping characteristics for a soft short. The switch does not have reverse current blocking when the switch is enabled and current is flowing to either C_CC1 or C_CC2.

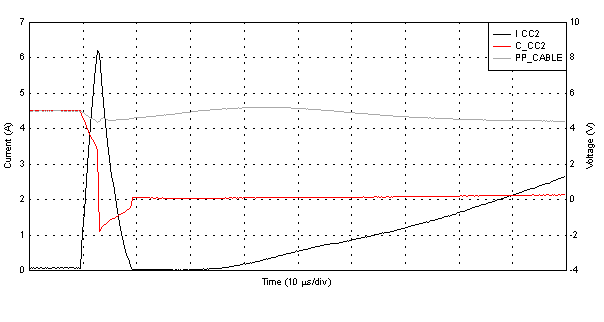

GUID-ACAE20B1-0733-4FD0-B6E8-8BF028F86217-low.gifFigure 9-31 PP_CABLE to C_CCn Current Limit with a Hard Short
GUID-554EC736-41B3-4A1B-A1EF-DF88A547E18C-low.gifFigure 9-32 PP_CABLE to C_CCn Current Limit with a Hard Short (Extended Time Base)
GUID-6F7F32D5-1A7A-4D6C-A3C1-B37DDC5895D0-low.gifFigure 9-33 PP_CABLE to C_CCn Current Limit Response with a Soft Short (2 Ω)
