8.3.11 Digital Core

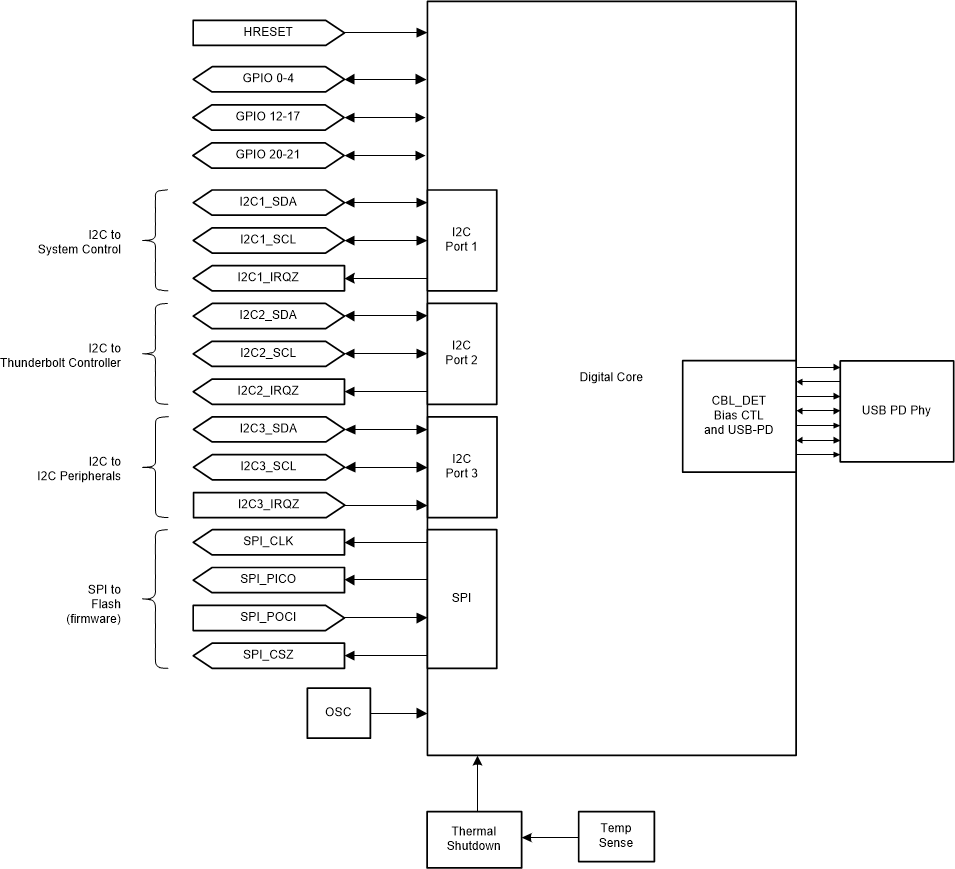

Figure 8-22 shows a simplified block diagram of the digital core.

GUID-05ECF012-CEDA-4F3A-9F85-5EB0E5B3384D-low.gif Figure 8-22 Digital Core Block Diagram
