8.3.12.5 I2C Pin Address Setting (ADCIN2)

To enable the setting of multiple I2C addresses using a single TPS65988 pin, a resistor divider is placed externally on the ADCIN2 pin. The internal ADC then decodes the address from this divider value. Figure 8-29 shows the decoding.

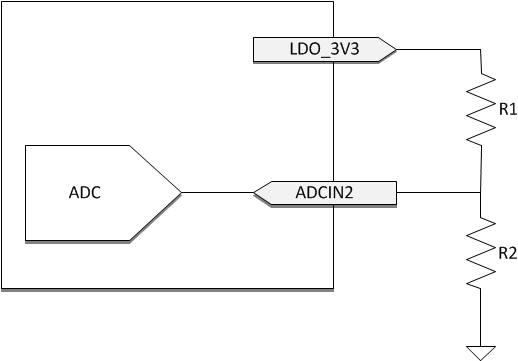

GUID-EC7EEA8E-D141-453B-9B28-4984229880F4-low.gifFigure 8-29 I2C Address Divider

Table 8-6 lists the external divider needed to set bits [3:1] of the I2C Unique Address.

Table 8-6 I2C Address Selection
DIV = R2/(R1+R2)(1)I2C UNIQUE ADDRESS [3:1]
DIV_minDIV_maxI2C_ADDR_DECODE_C1I2C_ADDR_DECODE_C2
0.000.18000b100b
0.200.38001b101b
0.400.58010b110b
0.601.00011b111b
(1) External resistor tolerance of 1% is required. Resistor values must be chosen to yield a DIV value centered nominally between listed MIN and MAX values.
