8.3.9.3 SPI

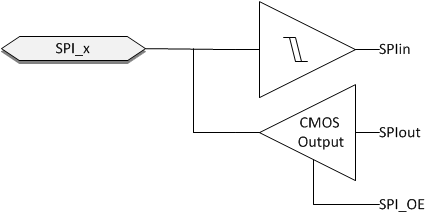

The TPS65988 has a single SPI controller interface for use with external memory devices. Figure 8-21 shows the I/O buffers for the SPI interface.

GUID-94D3AF82-C63D-41B0-951D-BD0E42DB45BA-low.gifFigure 8-21 SPI buffer
