8.1.13.2 Sequencing with a Microcontroller (MCU)

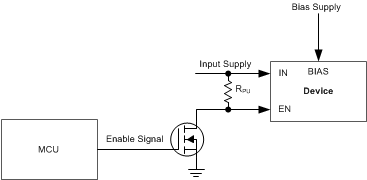

If a push-pull output stage is used to provide the enable signal to the device and the enable signal can possibly come before VIN when a bias is present (such as with an MCU), convert the enable signal to an open-drain signal as shown in Figure 8-7. Using an open-drain signal ensures that if the signal arrives before VIN, then the enable voltage does not violate the sequencing requirement.

GUID-32CFDAB9-8018-41EE-9BA2-C873D09BFB5A-low.gifFigure 8-7 Push-Pull Enable to Open-Drain Enable
