8.1.9 ANY-OUT Operation

Considering the use of the ANY-OUT internal network (where the unit resistance of 1R is equal to 6.05 kΩ) the output voltage is set by grounding the appropriate control pins, as shown in Figure 8-2. When grounded, all control pins add a specific voltage on top of the internal reference voltage (VNR/SS = 0.8 V). The output voltage can be calculated by Equation 6 and Equation 7. Figure 8-2 and Figure 8-3 show a 0.9-V output voltage, respectively, that provide an example of the circuit usage with and without bias voltage.

GUID-2927A56E-55D7-4276-A058-B3ADA54D89B2-low.gifFigure 8-2 ANY-OUT Configuration Circuit (3.3-V Output, No External Bias)
Equation 6. VOUT(nom) = VNR/SS + 1.6 V + 0.8 V + 0.1 V = 0.8 V + 1.6 V + 0.8 V + 0.1 V = 3.3 V

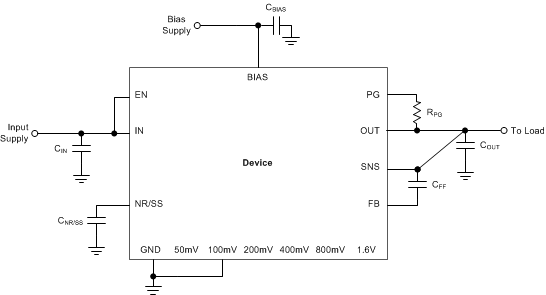

GUID-7208AC6C-4197-4BC8-A55A-E7BE385CF3C2-low.gifFigure 8-3 ANY-OUT Configuration Circuit (0.9-V Output with Bias)
Equation 7. VOUT(nom) = VNR/SS + 0.1 V = 0.8 V + 0.1 V = 0.9 V
