Typical Characteristics

specified at TJ = –40°C to +150°C, VIN = 13.5 V,  IOUT = 100 µA, COUT = 2.2 µF, 1 mΩ < COUT ESR < 2 Ω, CIN = 1 µF, and
VEN = 2 V
(unless otherwise noted)


Figure 6-1 Accuracy vs Temperature
VOUT = 5 V, IOUT = 5 mA
Figure 6-3 Line Regulation vs VIN
VOUT = 5 V
Figure 6-5 Load Regulation vs IOUT
 COUT = 10 µF
Figure 6-7 Line Regulation at 100 mA
COUT = 10 µF (X7R 50 V), VOUT = 5 V

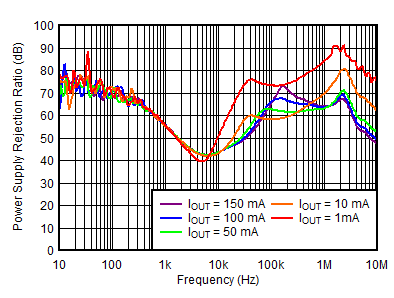

Figure 6-9 PSRR vs Frequency and IOUT
VOUT = 3.3 V, COUT = 10 µF
Figure 6-11 Noise vs Frequency at 3.3 V
VOUT = 5 V, IOUT = 1 mA, VIN = 13.5 V to 40 V,
slew rate = 2.7 V/µs, VEN = 3.3 V, COUT = 10 µF
Figure 6-13 Line Transients at 13.5 V to 40 V
VOUT = 5 V, IOUT = 0 mA to 100 mA, slew rate = 1 A/µs,
VEN = 3.3 V, COUT = 10 µF
Figure 6-15 Load Transient, No Load to 100 mA
VOUT = 5 V, IOUT = 45 mA to 105 mA, slew rate = 0.1 A/µs,
VEN = 3.3 V, COUT = 10 µF
Figure 6-17 Load Transient, 45 mA to 105 mA
VOUT = 5 V, IOUT = 0 mA to 150 mA, slew rate = 1 A/µs,
VEN = 3.3 V, COUT = 10 µF

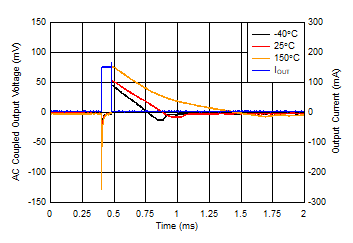

Figure 6-19 Load Transient, No Load to 150 mA
VIN = VOUT + 1 V, VOUT = 90% × VOUT(NOM)

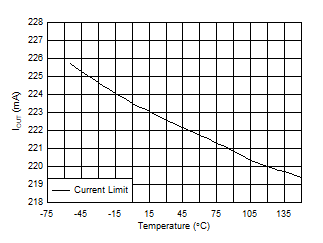

Figure 6-21 Output Current Limit vs Temperature
VOUT = 5 V

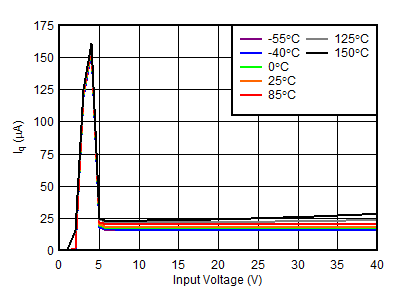

Figure 6-23 Quiescent Current (IQ) vs VIN
 IOUT = 100 mA
Figure 6-25 Ground Current

Figure 6-27 EN Threshold vs Temperature
 VIN = 13.5 V, COUT = 10 µF

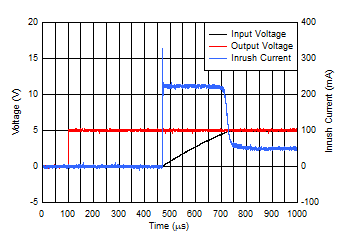

Figure 6-29 Startup Plot With EN

Figure 6-31 Output Voltage vs Injected Current

Figure 6-33 Stability ESR vs COUT
VOUT = 5 V, IOUT = 150 mA

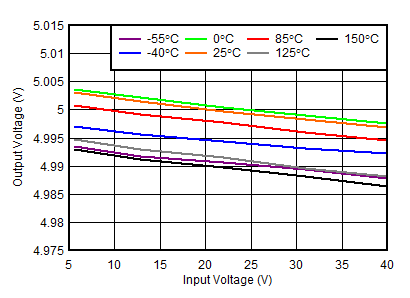

Figure 6-2 Line Regulation vs VIN
VOUT = 5 V, IOUT = 1 mA
Figure 6-4 Line Regulation vs VIN
COUT = 10 µF
Figure 6-6 Line Regulation at 50 mA
VIN = 3 V
Figure 6-8 Dropout Voltage (VDO) vs IOUT
COUT = 10 µF (X7R 50 V), IOUT = 150 mA, VOUT = 5 V
Figure 6-10 PSRR vs Frequency and VIN
VOUT = 5 V, COUT = 10 µF
Figure 6-12 Noise vs Frequency at 5.0 V

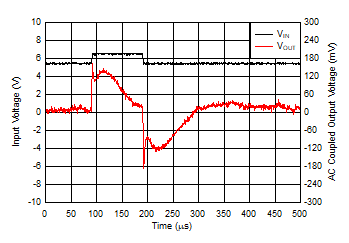

VOUT = 5 V, VIN = 5.5 V to 6.5 V, trise = 1 µs, COUT = 10 µF

Figure 6-14 Line Transients at 5.5 V to 6.5 V
VOUT = 5 V, IOUT = 0 mA to 100 mA, slew rate = 1 A/µs,
VEN = 3.3 V, COUT = 10 µF
Figure 6-16 Load Transient, No Load to 100-mA Rising Edge
VOUT = 5 V, IOUT = 45 mA to 105 mA, slew rate = 0.1 A/µs,
VEN = 3.3 V, COUT = 10 µF
Figure 6-18 Load Transient, 45-mA to 105-mA Rising Edge
VOUT = 5 V, IOUT = 0 mA to 150 mA, slew rate = 1 A/µs, VEN = 3.3 V, COUT = 10 µF
Figure 6-20 Load Transient, No Load to 150-mA Rising Edge
VOUT = 5 V

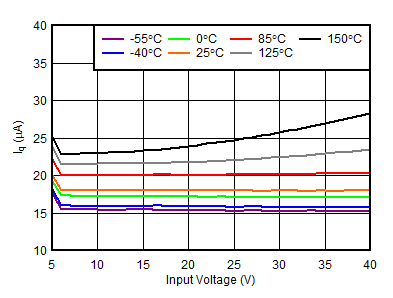

Figure 6-22 Quiescent Current (IQ) vs VIN

Figure 6-24 Ground Current (IGND) vs IOUT
 IOUT = 500 µA
Figure 6-26 Ground Current

Figure 6-28 Undervoltage Lockout (UVLO) Threshold vs Temperature
COUT = 10 µF

Figure 6-30 Startup Plot

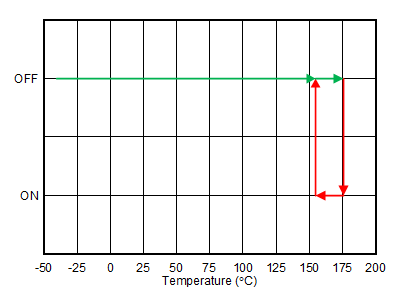

Figure 6-32 Thermal Shutdown
