9.2.4 Application Curves

Buck LED driver example: VOUT = 22 V (7 LEDs), IOUT = 1 A

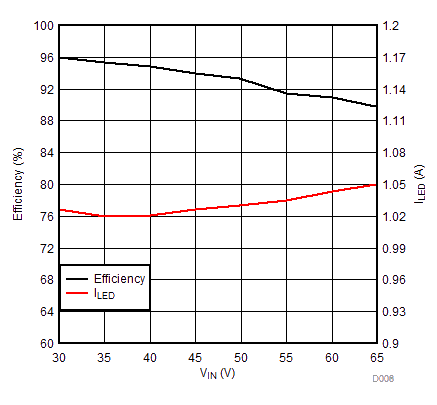

TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 D006_SLUSBZ6.gif
VLED = 22 V IOUT = 1.0 A
Figure 34. Efficiency and Output Current vs. Input Voltage
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 WorkedApp_Scope_Start.gif
A.      Ch1: SW Voltage; Ch2: VIN (DC Coupled);
     Ch4: Inductor current; UVLO designed limit attained.
     Time: 1 ms/div
Figure 36. Startup Transient

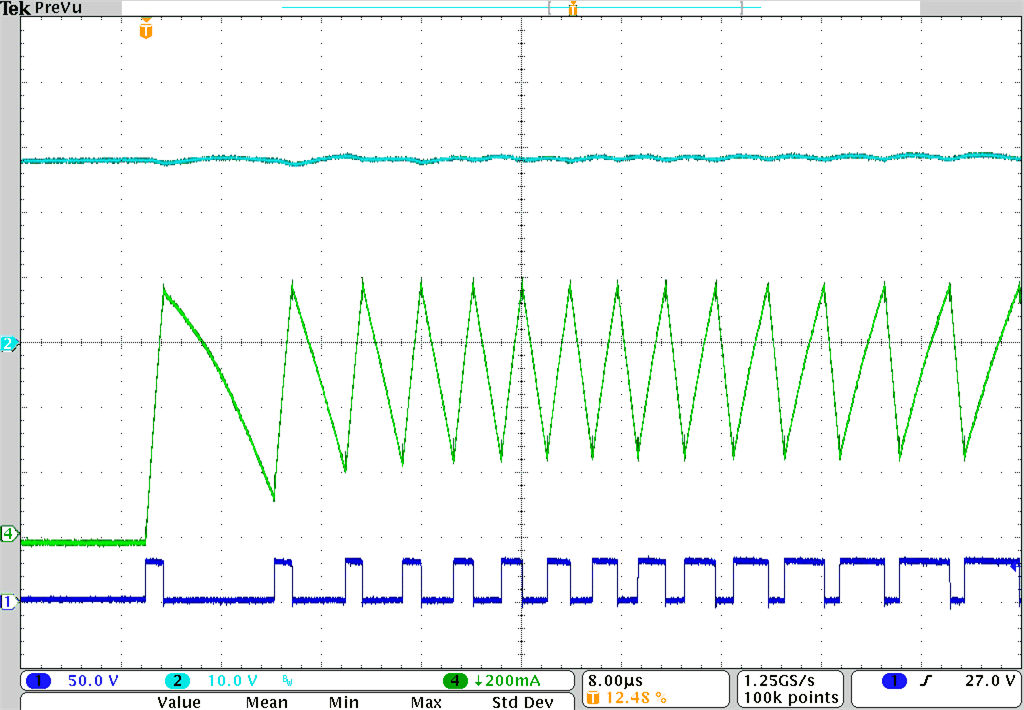

TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 WorkedApp_Scope_Pulse1.gif
A.      Ch1: SW Voltage; Ch2: VIN (DC Coupled);
     Ch4: Inductor current;
     Time: 8 µs/div
Figure 38. First 15 SW Node Pulses at Turn-On

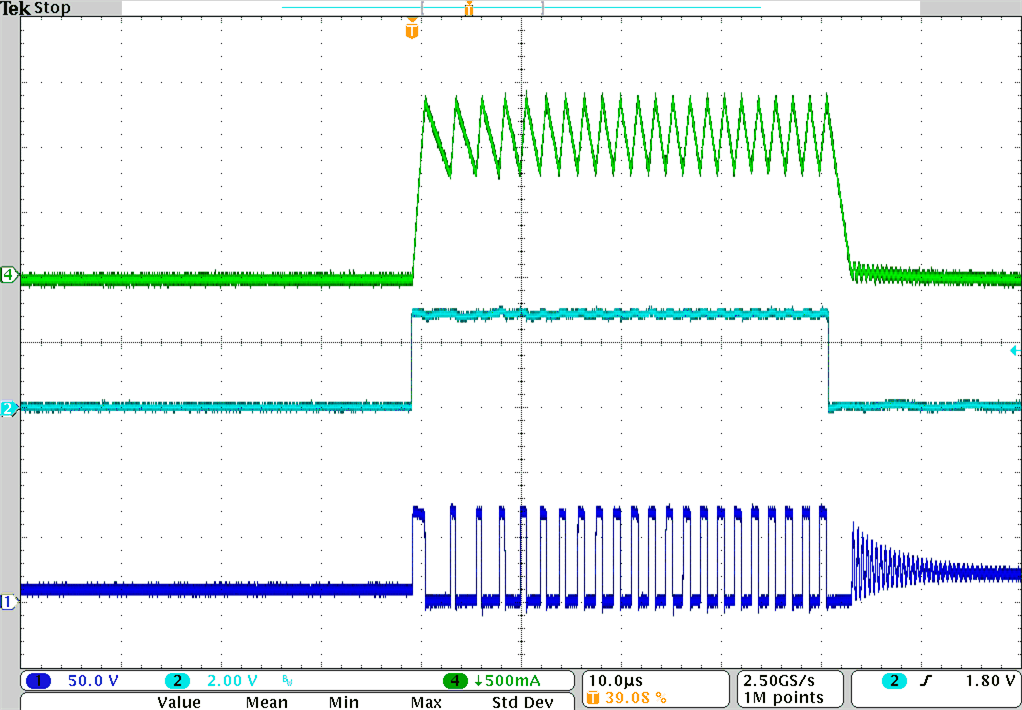

TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 WorkedApp_Scope_PWM2.gif
A.      Ch1: SW Voltage; Ch2: PWM pin;
     Ch4: Inductor current;
     Time: 10 µs/div
Figure 40. PWM Dimming: 250Hz, 1% Duty Cycle
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 ShuntFET_OptimalZoom.png
A.      Ch1: PWM Signal
     Ch4: Inductor current; ΔIL-PP Maintained
     Time: 20 µs/div
Figure 42. Shunt FET Dimming - Optimized Inductor Current Waveform

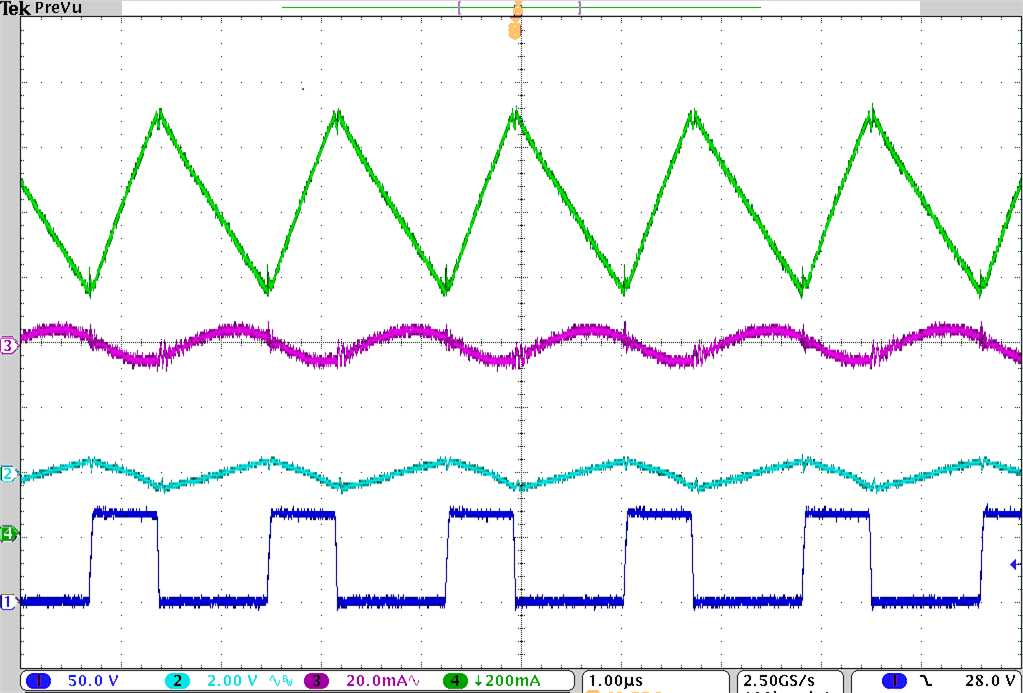

TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 WorkedApp_Scope_Nom.gif
A.      Ch1: SW Voltage; Ch2: VIN Ripple Voltage (AC Coupled);
     Ch3: ILED-PP; Ch4: Inductor current;
     Time: 1 µs/div
Figure 35. Normal Operation

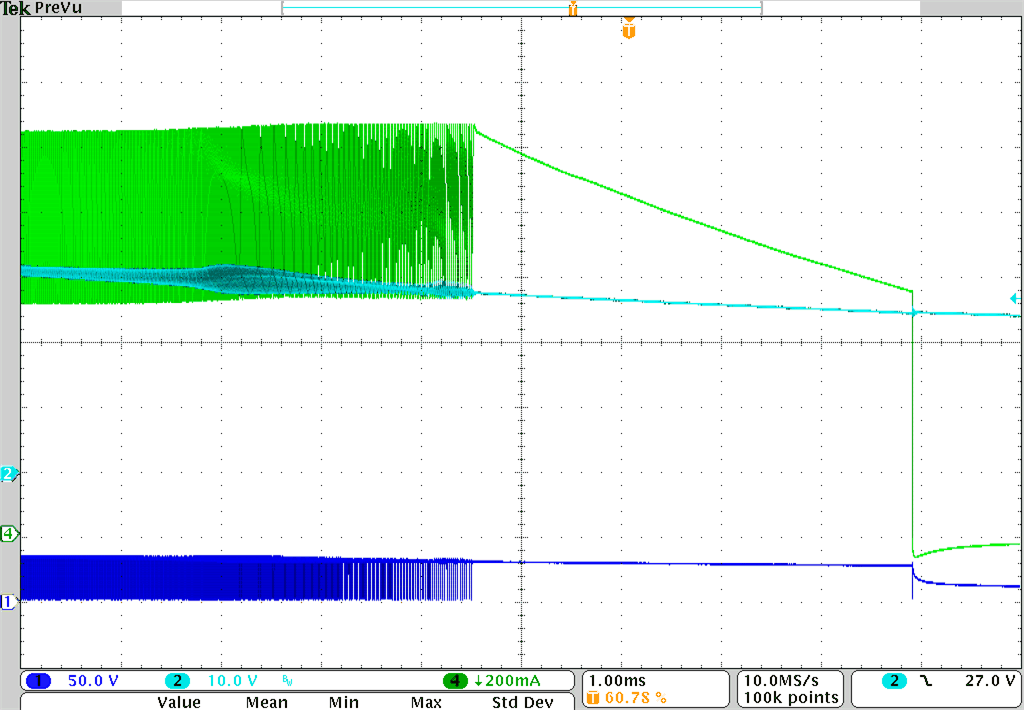

TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 WorkedApp_Scope_Sdown.gif
A.      Ch1: SW Voltage; Ch2: VIN (DC Coupled);
     Ch4: Inductor current; UVLO designed limit attained.
     Time: 1 ms/div
Figure 37. Shut-Down Transient

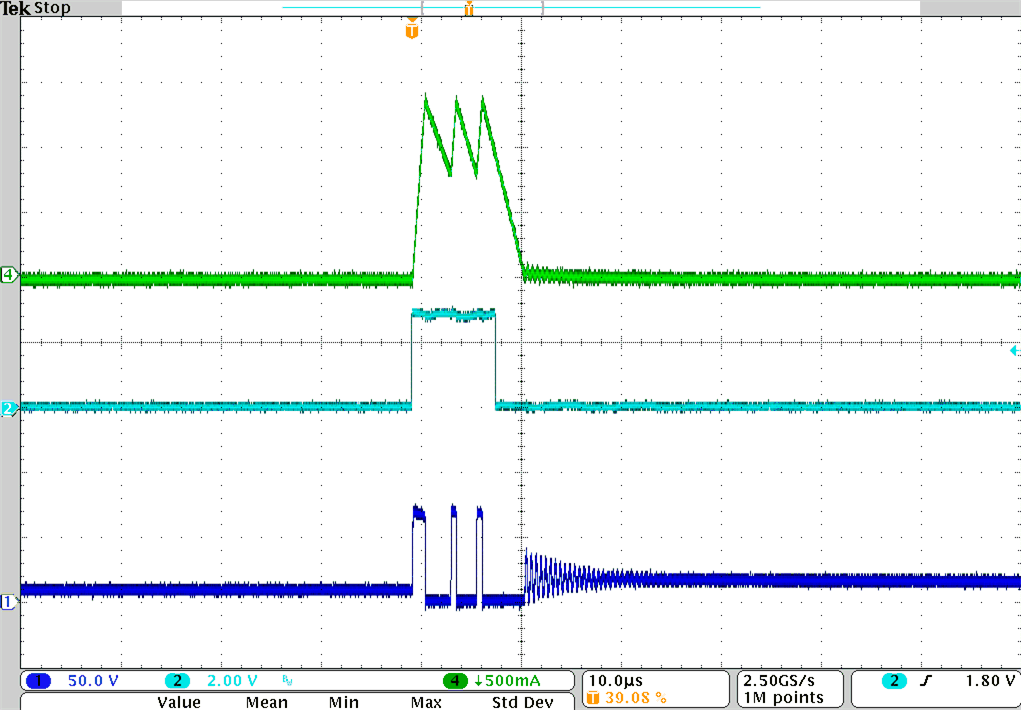

TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 WorkedApp_Scope_PWM1.gif
A.      Ch1: SW Voltage; Ch2: PWM pin;
     Ch4: Inductor current;
     Time: 10 µs/div
Figure 39. PWM Dimming: 250Hz, 0.25% Duty Cycle

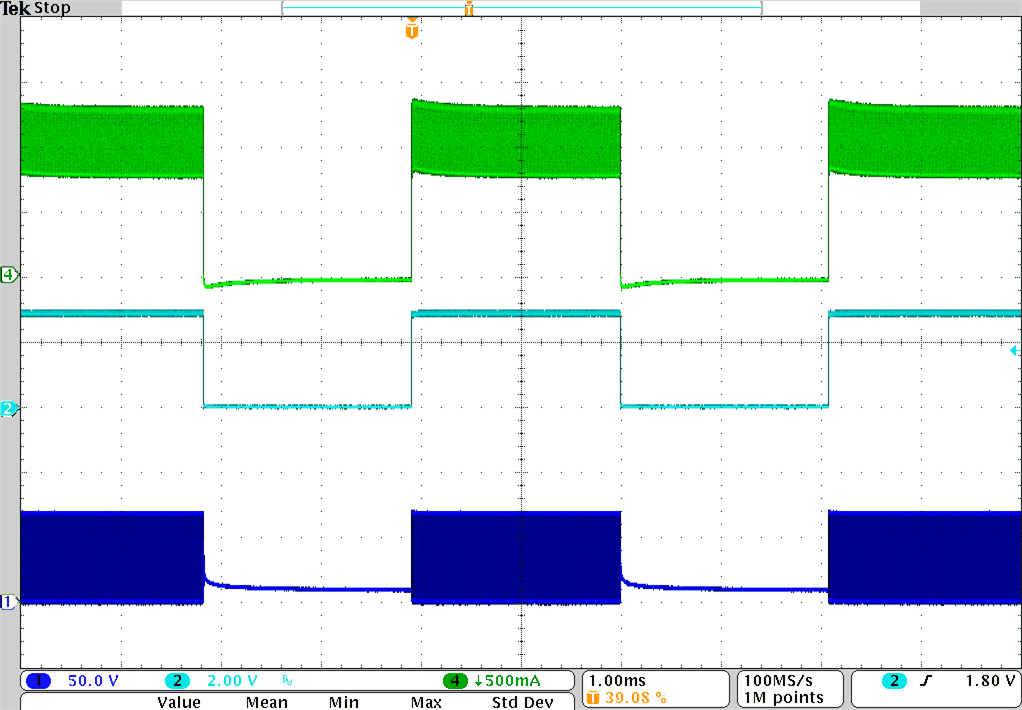

TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 WorkedApp_Scope_PWM3.gif
A.      Ch1: SW Voltage; Ch2: PWM pin;
     Ch4: Inductor current;
     Time: 1 ms/div
Figure 41. PWM Dimming: 250Hz, 50% Duty Cycle
TPS92515 TPS92515-Q1 TPS92515HV TPS92515HV-Q1 ShuntFET_nonOptimal.png
A.      Ch1: PWM Signal
     Ch4: Inductor current; OFF-time reaching Maximum OFF-Time
     Time: 400 µs/div
Figure 43. Shunt FET Dimming - Non-Optimized Inductor Current
