7.4 Device Functional Modes

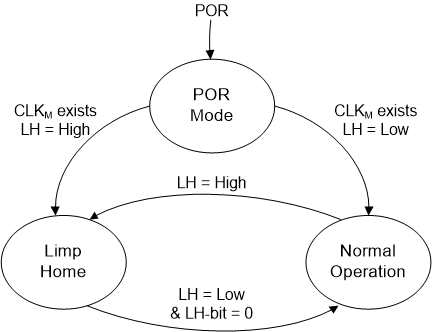

The TPS92682-Q1 operates in the functional modes shown in Figure 7-19.

GUID-6339925E-B16A-459A-9CB7-0AE00B1ABB88-low.gifFigure 7-19 TPS92682 Functional Mode
