8.3.5 Feedback Compensation

The loop gain T(s) is the product of the converter transfer function GVVC(s) and the feedback transfer function GC(s). The TPS92682-Q1 device, when configured as a BOOST voltage regulator, is normally followed by a second stage switching converter, which acts as a power sink load. In this case, the converter transfer function, GVVC(s), can be approximated as shown in Equation 46. The GVVC(s) has a low frequency pole, ωP1, and a high frequency pole, ωP2, when the converter operates in CCM. In DCM, ωP2 can be ignored. In a BOOST topology, the transfer function has a right half-plane zero.

Equation 46. GUID-5E17676B-8905-4114-813B-BDC8BBEA2F0B-low.gif

Table 8-2 summarizes the expressions for the small-signal model parameters of a BOOST converter operating in CCM or DCM.

Table 8-2 Small-Signal Model Parameters for CV BOOST
BOOST TOPOLOGY G0 ωP1 ωP2 ωZ
CCM GUID-BE0B5260-E922-4195-9FA7-B0ADAB75D42A-low.gif GUID-B7968E63-7120-42D3-AB22-EB619CF5ACC7-low.gif GUID-9C0A373E-DFBE-43A6-B8AB-B2372F873B4F-low.gif GUID-0AAD854F-2107-4B10-BC54-B4573EA13ACA-low.gif
DCM GUID-6DFBD09D-CB3E-46F8-B86A-092EDEB097F3-low.gif GUID-335256FC-71FA-47BF-AEAE-23BDFCB5D80F-low.gif ∞ GUID-16186C9D-AC3E-4296-B02D-6642B86467E7-low.gif

In Table 8-2, Fm is the compensation ramp gain, Fv is the VO feedback gain, IO is the DC output current, and VC is the DC compensation voltage. In a BOOST topology:

Equation 47. GUID-02EE5CEC-7B75-44DB-947C-9CAD0D2C469B-low.gif
Equation 48. GUID-C33857EC-F55C-4DF1-88A4-6E65C2DEB27C-low.gif
Equation 49. GUID-0EE4EA52-3DBB-41E6-B77E-DAB82E372870-low.gif

The feedback transfer function includes the voltage divider gain (HFB = RFB1 / (RFB1 + RFB2)) and the transconductance amplifier gain. A compensation network at the output of the error amplifier is used to configure loop gain and phase characteristics. In CV BOOST application, a Proportional-Integral (PI) compensation is recommended. A network of RCOMP, CCOMP, and CHF, shown in Figure 8-9, can be used to implement PI compensation to create a pole at the origin, a low-frequency zero, and a high-frequency pole.

The feedback transfer function is defined as follows.

Feedback transfer function with proportional integral compensation:

Equation 50. GUID-32FBBB85-CDAD-46C2-BC18-1327FC97BA71-low.gif

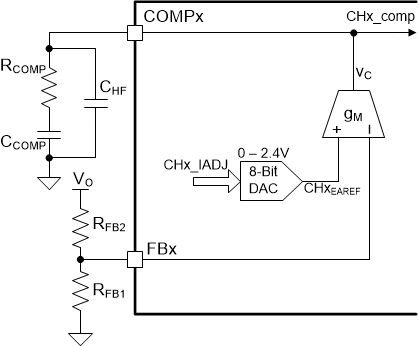

GUID-E325EB70-7C1C-4B34-B3C9-047720B6CC05-low.gifFigure 8-9 Proportional Integral Compensator

The pole at the origin minimizes output steady-state error. High bandwidth is achieved with the PI compensator by introducing a phase lead using a low-frequency zero.

PI compensator component values can be found by selecting a reasonable bandwidth and phase-margin. It is recommended to select a bandwidth of ωC smaller than the RHP zero ωZ by a factor of KC in the range of 5 to 10. Assuming ωC = ωZ / KC and ωC >> ωP1:

Equation 51. GUID-4D86C4D0-066E-490B-9BD8-B7E9DF1AE165-low.gif

The compensator zero, generated by the RCOMP and CCOMP is recommended to be placed far below the bandwidth ωC and above ωP1 to provide adequate phase-margin. It is recommended to set the low-frequency zero of the compensator as follows:

Equation 52. GUID-956F399D-47F6-4B3C-8A53-889BD4D7BC29-low.gif

where

  • KP is a factor in the range of 1 to 5

From Equation 51 and Equation 52, CCOMP can be found.

Equation 53. GUID-11AA42A3-A8E3-48AA-8300-5B0AE76E4ED1-low.gif
