8.4 Typical Application CC Mode

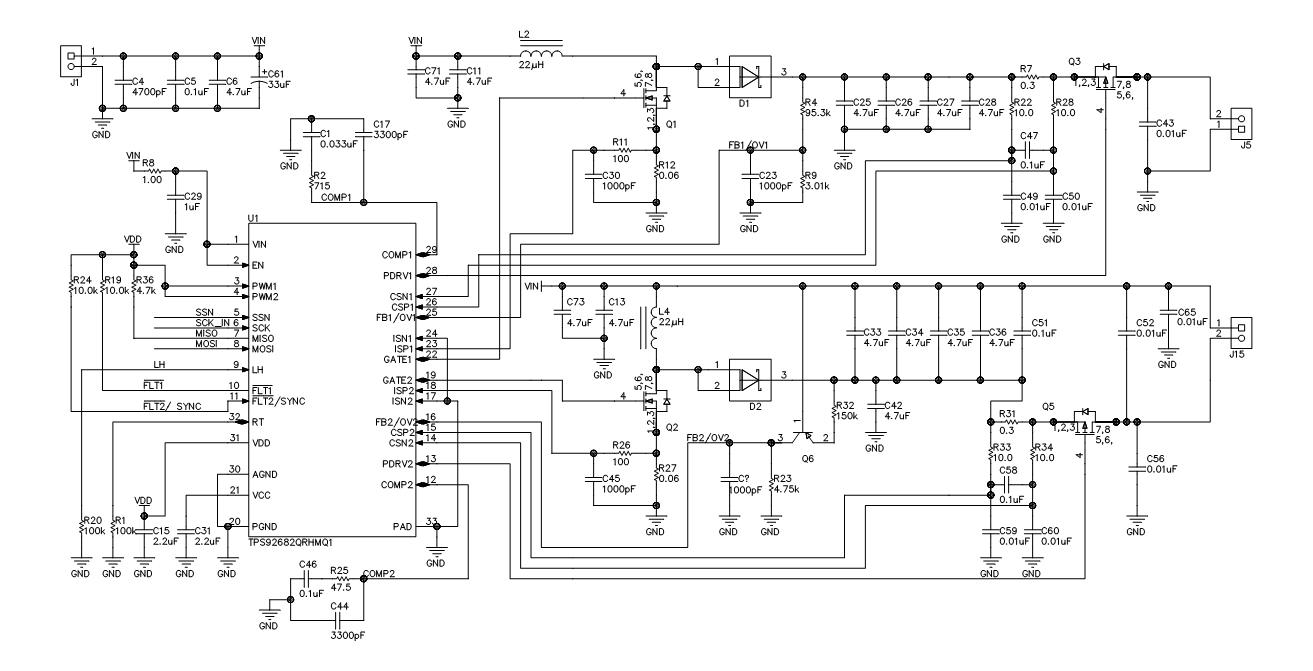

Figure 8-11 shows the schematic for a dual channel, high-side current sense, Boost and Buck-Boost LED driver with PFET dimming. In this application, the Channel-1 of the device is configured as Boost and the Channel-2 as Buck-Boost.

GUID-A119077A-632E-47B3-B4AE-41FCA5B6F982-low.gifFigure 8-11 CC Mode LED Driver, BOOST, and Buck-Boost
