8.2.5 Feedback Compensation

The loop gain T(s) is the product of the converter transfer function Givc(s) (Equation 28) and the feedback transfer function Gc(s).

Using a first-order approximation, the converter transfer function can be modeled as a single pole created by the output capacitor and the LED string dynamic resistance, rD. In the boost and buck-boost topologies, the transfer function has a right half-plane zero created by the inductor, and the DC output current ILED. The ESR of the output capacitor is neglected in this analysis.

Equation 28. GUID-4F40BAEC-619E-4151-B0A7-1AD7AF9F389E-low.gif

Table 8-1 summarizes the expression for the small-signal model parameters.

Table 8-1 Small-Signal Model Parameters for CC Operation
DC GAIN (G0)POLE FREQUENCY (ωP)ZERO FREQUENCY (ωZ)
BoostGUID-439F54F3-8049-4557-8323-C38A01C3249E-low.gifGUID-1634B5FA-7412-43CE-8C64-3B00F43CC0B9-low.gifGUID-4F13DCA3-8F5E-43F9-B2A1-2BEE8E0103DE-low.gif
Buck-BoostGUID-CD094660-28B7-4438-AE0B-E381B7812D67-low.gifGUID-38554B9F-9EE1-4B3F-A896-5CF43B27557B-low.gifGUID-20CB1C11-840D-437A-BCE1-345C54459734-low.gif

The feedback transfer function includes the current sense resistor and the loop compensation of the transconductance amplifier. A compensation network at the output of the error amplifier is used to configure loop gain and phase characteristics. A simple capacitor, CCOMP, from COMPx to GND (as shown in Figure 8-4) provides integral compensation and creates a pole at the origin. Alternatively, a network of RCOMP, CCOMP, and CHF, shown in Figure 8-5, can be used to implement Proportional-Integral (PI) compensation to create a pole at the origin, a low-frequency zero, and a high-frequency pole.

The feedback transfer function is defined as follows.

Feedback transfer function with integral compensation:

Equation 29. GUID-636EF228-AE35-4BEB-897A-73F64FCE0BE9-low.gif

Feedback transfer function with proportional integral compensation:

Equation 30. GUID-BAF979FD-7D64-4158-8186-A11161F2C3CC-low.gif

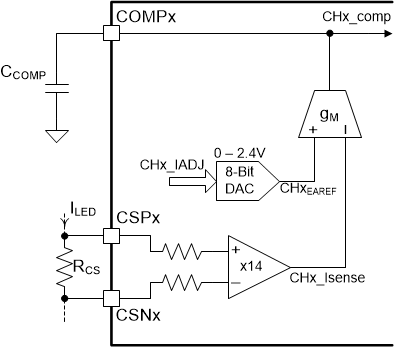

GUID-D7C9F7D6-FD71-4357-A606-4D6C05305F72-low.gifFigure 8-4 Integral Compensator
GUID-32EC8780-B9AD-4189-983E-2B8C8F4040CB-low.gifFigure 8-5 Proportional Integral Compensator

The pole at the origin minimizes output steady-state error. High bandwidth is achieved with the PI compensator by introducing a phase lead using a low-frequency zero. Use the following expressions to calculate the compensation network.

  • BOOST and BUCK-BOOST with an Integral Compensator:
    Equation 31. GUID-79F8AAB7-86CB-4A1B-8116-48A0DC87AA28-low.gif
  • BOOST and BUCK-BOOST with a Proportional-Integral Compensator:
    Equation 32. GUID-72D0133A-1399-48AF-87AE-0189F44351B3-low.gif
    Equation 33. GUID-11AA42A3-A8E3-48AA-8300-5B0AE76E4ED1-low.gif
    Equation 34. GUID-2A1D85E0-0E37-4B12-B37C-8318A0276190-low.gif

The above compensation values are calculated to provide reasonable phase margin (> 45°) and bandwidth. In practice, the above values can be modified for desired dynamic performance (for example: PWM dimming rise/fall-time or overshoot/undershoot).
