8.4.6 Application Curves

The following waveform curves are for the Boost and the Buck-Boost LED drivers. Channel-1 of the TPS92682-Q1 is configured as a Boost LED driver and the Channel-2 as a Buck-Boost.


CH1: Boost ILED current CH2: Buck-Boost ILED current CH3: Boost LED+ voltage (12×LED)  CH4: Buck-Boost LED+ voltage (3×LED)
Figure 8-12 PWM Dimming Transient
CH1: Boost ILED current CH2: Boost switch current sense voltage CH3: Boost LED+ voltage (12xLED)
Figure 8-14 Boost PWM Dimming, Switch Current
CH1: Boost ILED current CH2: Buck-Boost ILED current CH3: Boost LED+ voltage (12×LED) CH4: Buck-Boost LED+ voltage (6×LED)
Figure 8-16 Buck-Boost PWM Dimming, Switch Current
CH3: FB2/OV2 PIN voltage CH4: COMP2 PIN voltage
Figure 8-18 Buck-Boost LED Open Fault

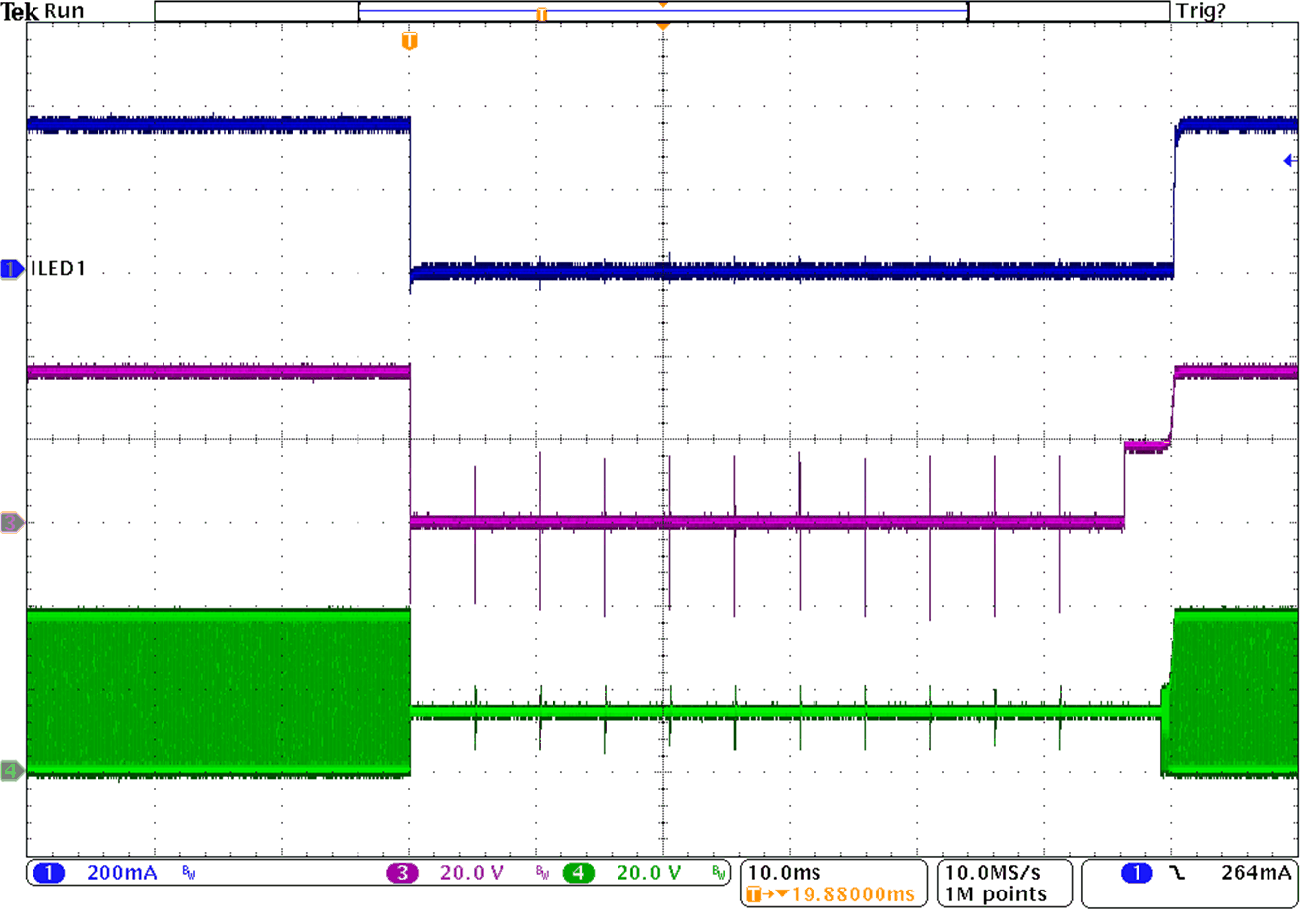

CH1: Boost ILED current CH3: Boost LED+ voltage CH4: Boost VSW voltage

Figure 8-20 Boost Output Short Fault
  12×LED, ILED = 560 mA

Figure 8-22 Boost Conducted EMI Scan with FM

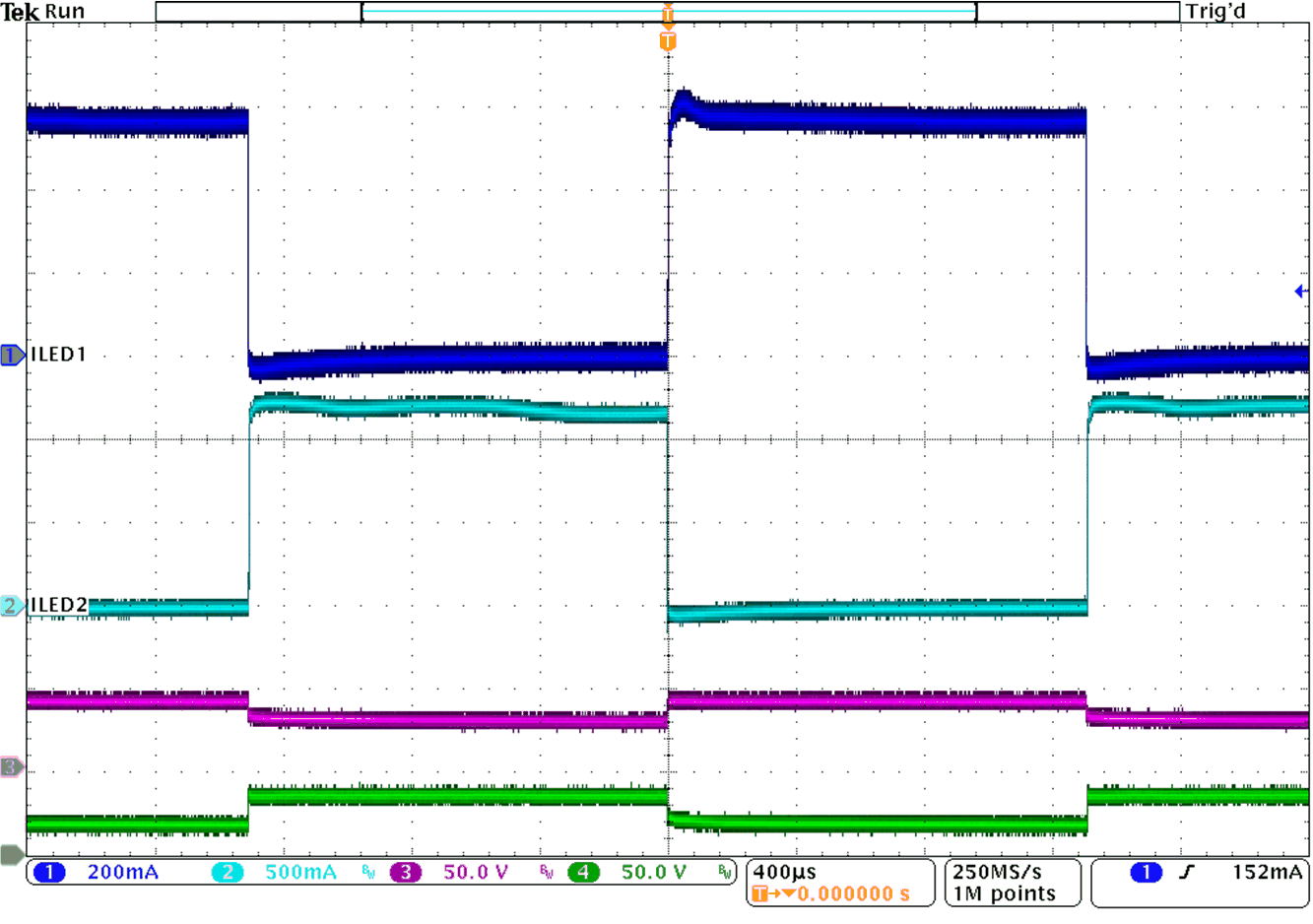

CH1: Boost ILED current CH2: Buck-Boost ILED current  CH3: Boost LED+ voltage (12×LED)  CH4: Buck-Boost LED+ voltage (3×LED)
Figure 8-13 PWM Dimming Transient with FM
CH2: Buck-Boost ILED current CH4: Buck-Boost switch current sense voltage CH3: Buck-Boost LED+ voltage (3×LED)

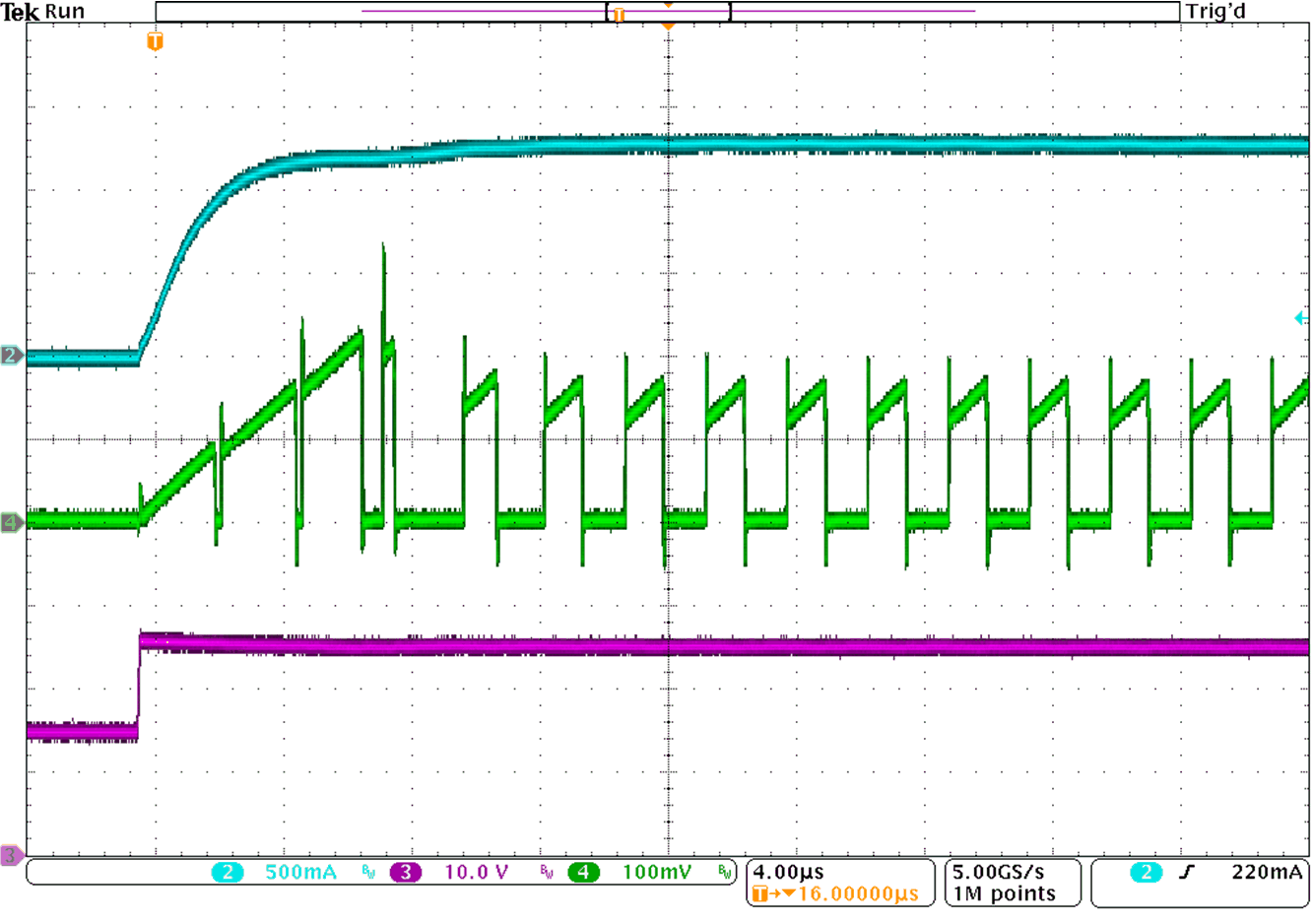

Figure 8-15 Buck-Boost PWM Dimming, Switch Current

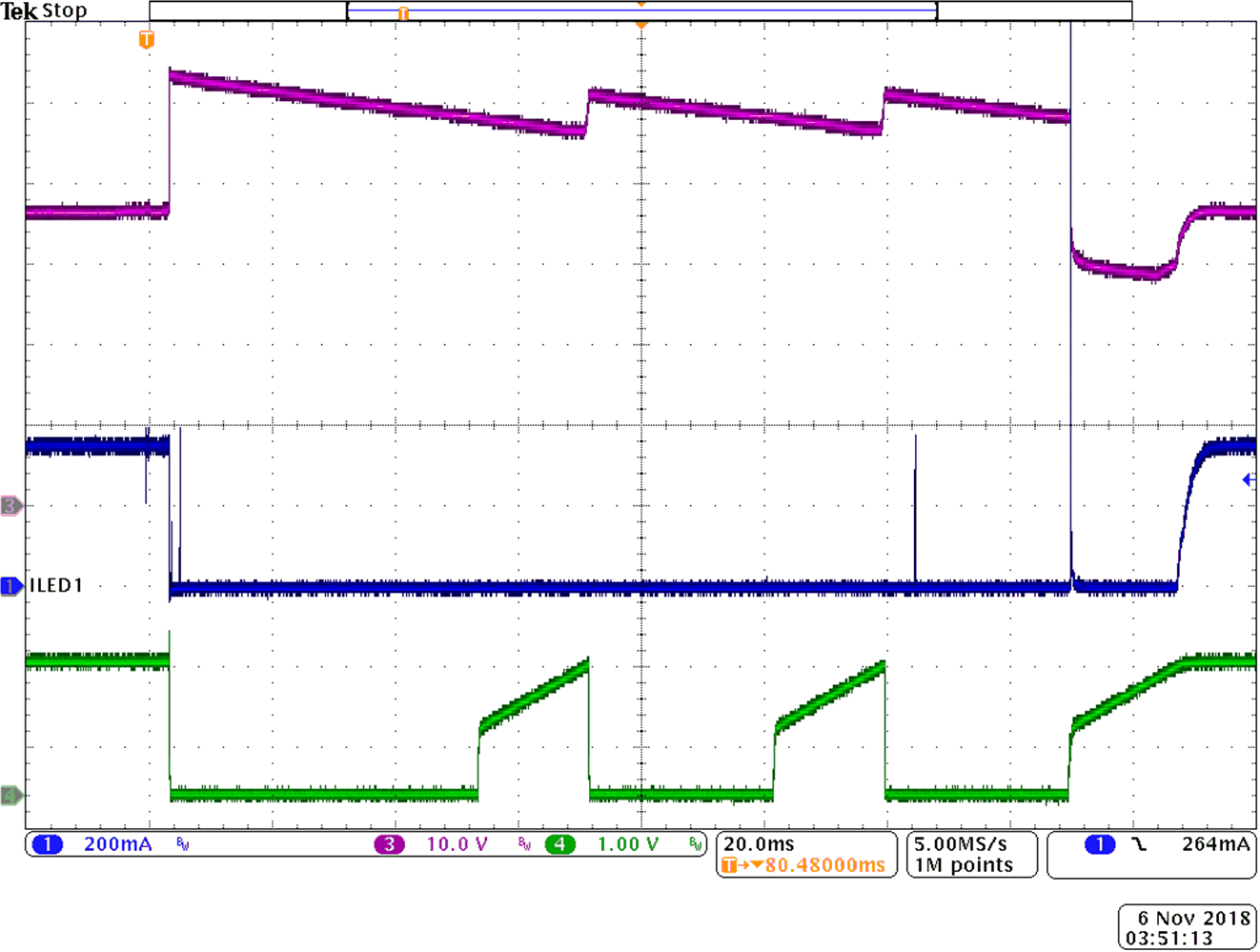

CH1: Boost ILED current CH3: Boost LED+ voltage (12×LED) CH4: COMP1-PIN voltage
Figure 8-17 Boost LED Open Fault

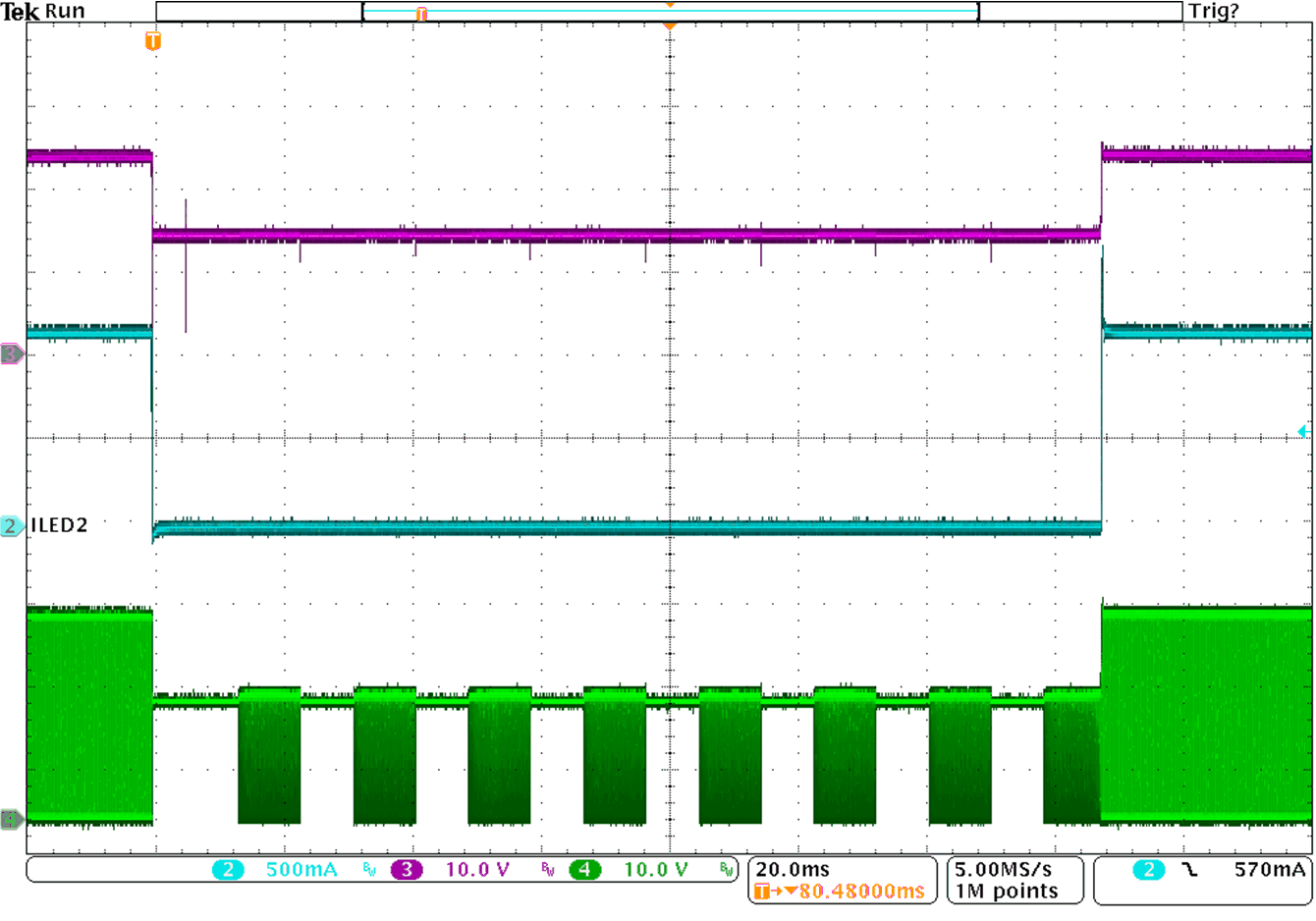

CH2: Buck-Boost ILED current CH3: FB2/OV2 PIN voltage CH4: Buck-Boost VSW voltage

Figure 8-19 Buck-Boost LED Open Fault
CH2: Buck-Boost ILED current CH3: Buck-Boost LED+ voltage CH4: Buck-Boost VSW voltage

Figure 8-21 Buck-Boost Output Short Fault

6×LED, ILED = 700 mA

Figure 8-23 Buck-Boost Conducted EMI Scan with FM
