8.3 Typical Application CV Mode

The TPS92682-Q1 controller, when configured in CV mode, is suitable for implementing step-up voltage regulator topologies including BOOST, SEPIC, and so forth. The device can also be configured in two-phase mode for efficiency optimization and reduced input and output current ripple. This section presents the design process for the BOOST voltage regulator. The design procedure can be easily adapted for other converter topologies, like 1:1 coupled-inductor SEPIC converter.

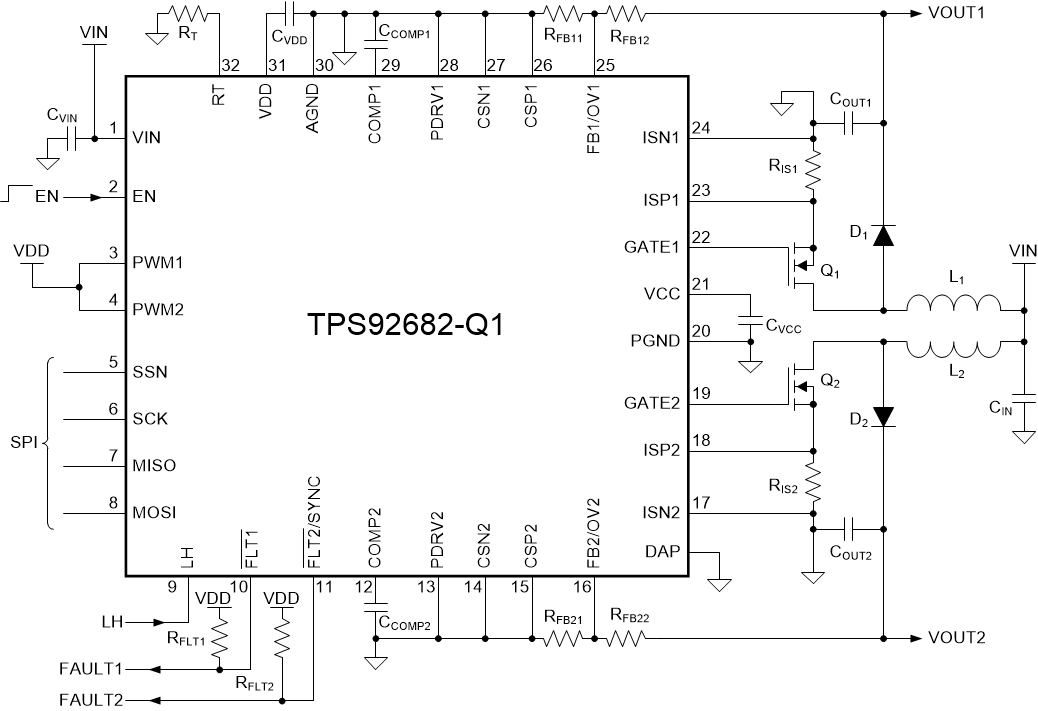

GUID-374BFC3F-9FAD-4857-834A-C691B91B5523-low.gifFigure 8-7 Two-Channel BOOST Voltage Regulator (CV mode)
GUID-1AD61552-24D5-481C-B41C-D21AF91EF90F-low.gifFigure 8-8 Two-Phase BOOST Voltage Regulator (CV mode)
