7.3.6.1.2 Clock Sync Point Selection

The TPSM41615 device implements a unique clock synchronization scheme for phase interleaving between devices. This is only used when stacking multiple devices. The device will receive a clock signal through the SYNC pin and generate sync points to achieve phase interleaving. Sync point options can be selected with a resistor from the RT pin to AGND. Figure 7-3 shows the clock signals for a primary and a secondary device with a 180° phase shift. See Table 7-7 for clock sync options and the corresponding RT resistor value.

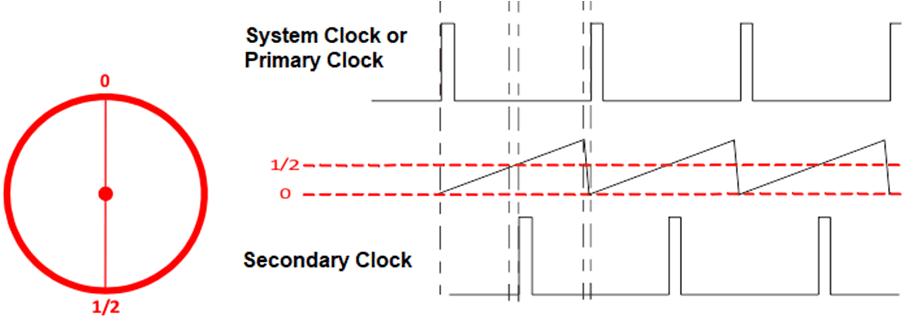

GUID-20201008-CA0I-T9TQ-KBJ8-ZXZN0DBXNZXQ-low.gif Figure 7-3 2-Phase Stackable with 180° Clock Phase Shift
Table 7-7 Sync Point Selection
CLOCK SYNC OPTIONSRT RESISTOR VALUE (kΩ)
0 (0° Interleaving)SHORT
1/2 (180° Interleaving)OPEN
