6.7 Typical Characteristics (VIN = 5 V)

TA = 25°C unless otherwise noted

GUID-99141344-239F-40C6-9819-2F7DF99BA60A-low.gifFigure 6-8 Efficiency vs Output Current
Refer to Table 7-1
Figure 6-10 Maximum Output Current
Fsw = 1.5 MHz Dual 1.2-V outputs IOUT1 = IOUT2
Figure 6-12 Safe Operating Area (VOUT = 1.2 V)
Fsw = 2.0 MHzDual 3.3-V outputsIOUT1 = IOUT2

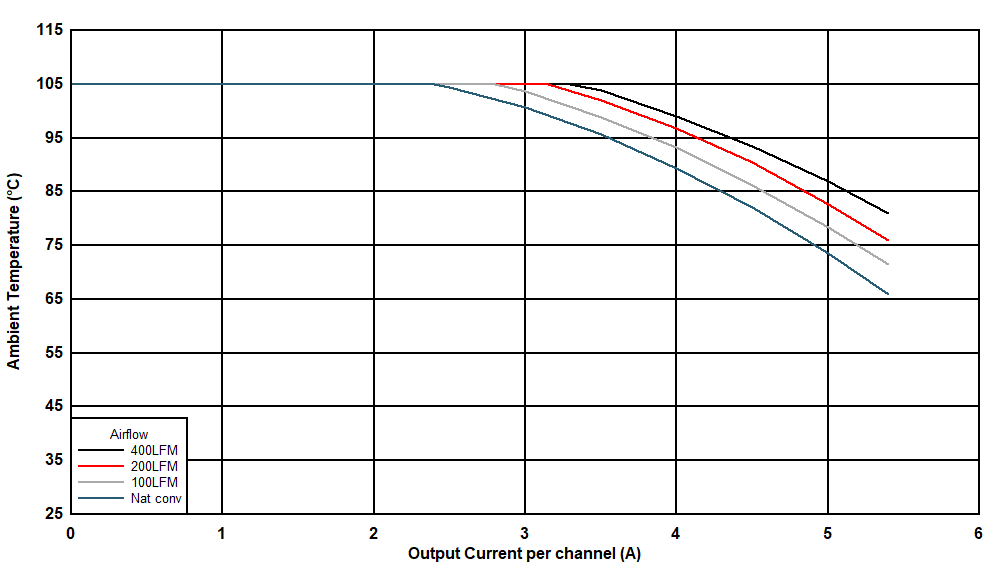

Figure 6-14 Safe Operating Area (VOUT = 3.3 V)
GUID-F6AFF9C6-D849-4DF2-A27A-0FB61CCB717E-low.gifFigure 6-9 Power Dissipation vs Output Current
Fsw = 1.0 MHz Dual 0.8-V outputs IOUT1 = IOUT2

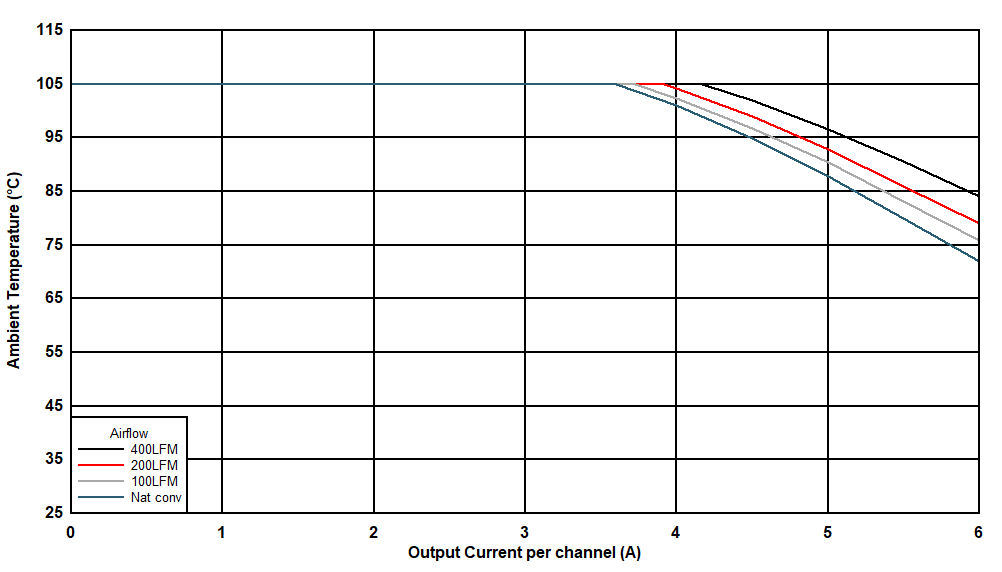

Figure 6-11 Safe Operating Area (VOUT = 0.8 V)
Fsw = 1.5 MHz Dual 1.8-V outputs IOUT1 = IOUT2
Figure 6-13 Safe Operating Area (VOUT = 1.8 V)
