6.8 Typical Characteristics

The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 1, Figure 2, Figure 3, Figure 4 and Figure 11.

The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 50 mm × 100 mm double-sided PCB with 2 oz. copper. Applies to Figure 5 and Figure 6.

TPSM84A22 Eff12VZoom.gif
VIN = 12V VG = open

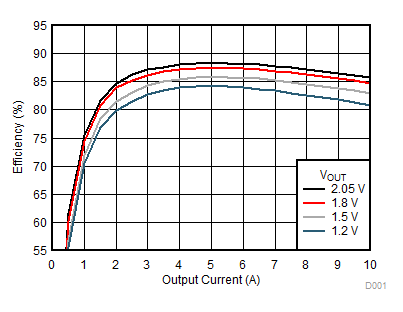

Figure 1. Efficiency
TPSM84A22 Pdiss12V.gif
VIN = 12V VG = open
Figure 3. Power Dissipation
TPSM84A22 SOA12V1_2VB.gif
VIN = 12V VOUT = 1.2V
Figure 5. Safe Operating Area
TPSM84A22 startup.gif
VIN = 12V VOUT = 1.8V IOUT = 1A

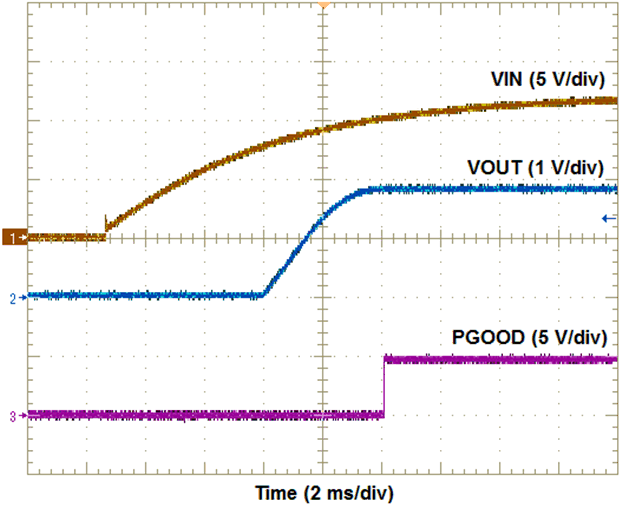

Figure 7. VIN Start-up Waveforms
TPSM84A22 ENon.gif
VIN = 12V VOUT = 1.8V IOUT = 1A

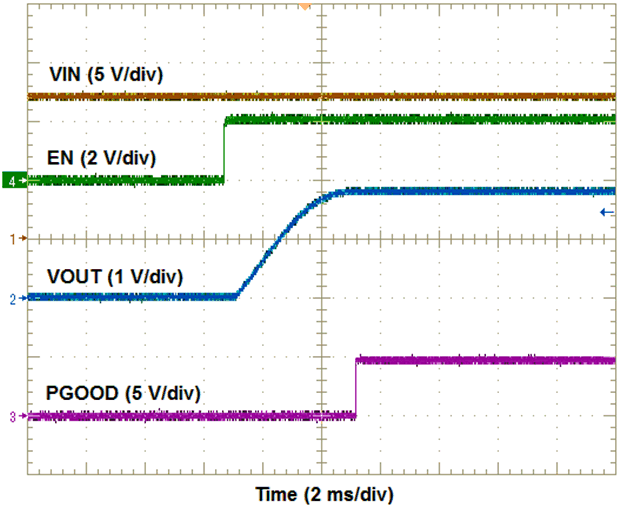

Figure 9. EN Start-up Waveforms
TPSM84A22 D001_SLVSDF8.gifFigure 11. Minimum Input Voltage
TPSM84A22 EffVGZoom.gif
VIN = 12V VG = 5V

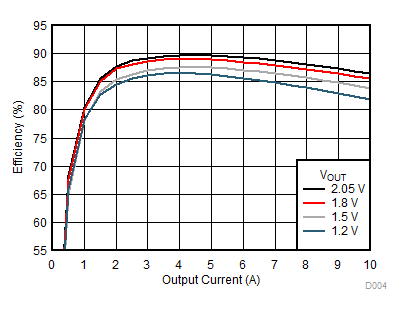

Figure 2. Efficiency
TPSM84A22 Ripple12V.gif
VIN = 12V
Figure 4. Output Voltage Ripple
TPSM84A22 SOA12V1_8V.gif
VIN = 12V VOUT = 1.8V
Figure 6. Safe Operating Area
TPSM84A22 shutdown3.gif
VIN = 12V VOUT = 1.8V IOUT = 1A

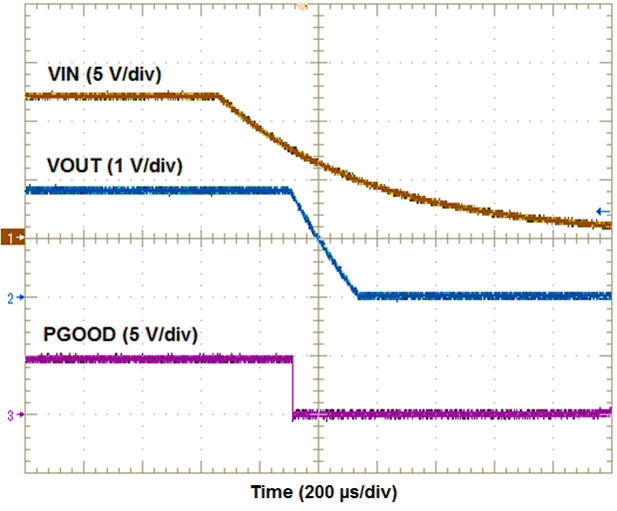

Figure 8. VIN Shut-down Waveforms
TPSM84A22 ENoff2.gif
VIN = 12V VOUT = 1.8V IOUT = 1A

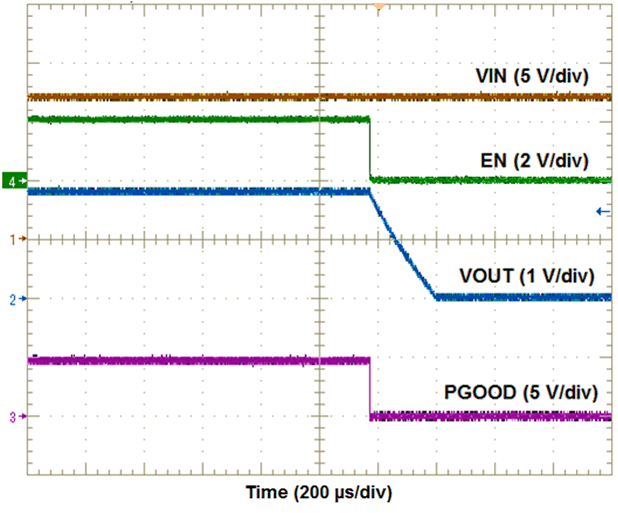

Figure 10. EN Shut-down Waveforms
