6.10.2 Parallel Interface Mode

In parallel mode, the start condition is generated on the rising edge of the I/O_7 pin while the CLK is high.

This is used to reset the interface logic. Figure 6-14, Figure 6-15, and Figure 6-16 show the sequence of the data, with an 8-bit address word first, followed by data.

Communication is ended by:

  • The StopSmpl condition, where a falling edge on the I/O_7 pin is expected while CLK is high.
  • The StopCont condition, where the I/O_7 pin must have a successive rising and falling edge while CLK is low to reset the parallel interface and be ready for the new communication sequence.
  • The StopSmpl condition is also used to terminate the direct mode.

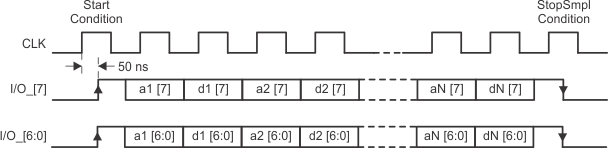

TRF7964A parallel_comm_simple_stop_slos743.gifFigure 6-14 Parallel Interface Communication With Simple Stop Condition (StopSmpl)
TRF7964A parallel_comm_cont_stop_slos743.gifFigure 6-15 Parallel Interface Communication With Continuous Stop Condition (StopCont)

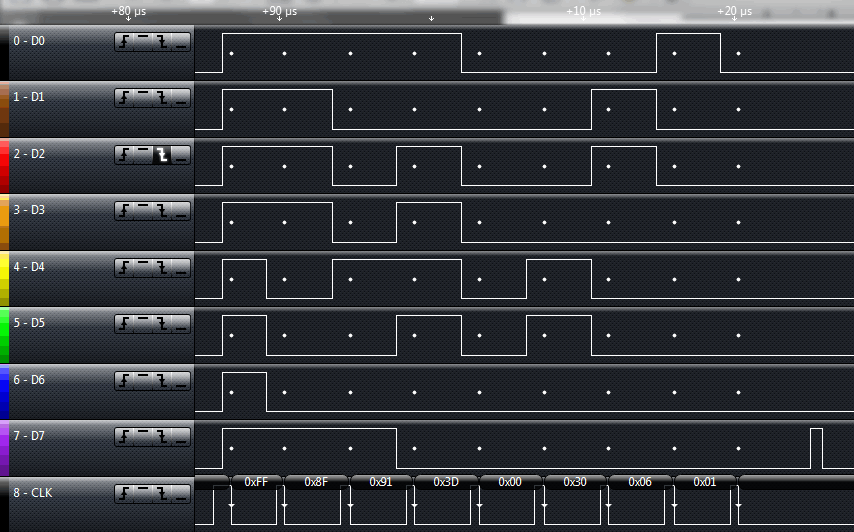

TRF7964A example_parallel_comm_cont_stop_slos743.pngFigure 6-16 Example of Parallel Interface Communication With Continuous Stop Condition
