7 Parameter Measurement Information

CL includes probe and jig capacitance.
The pulse generator has the following characteristics: PRR = 250 kbps, ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 7-1 Driver Slew Rate

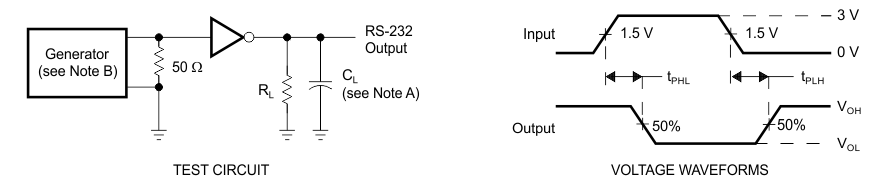

CL includes probe and jig capacitance.
The pulse generator has the following characteristics: PRR = 250 kbps, ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 7-2 Driver Pulse Skew
CL includes probe and jig capacitance.
The pulse generator has the following characteristics: ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns.
Figure 7-3 Receiver Propagation Delay Times
