SCDS248E October 2009 – September 2022 TS12A12511
PRODUCTION DATA
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
Package Options
Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information
6.8 Typical Characteristics
Figure 6-1 RON vs VIO
Figure 6-3 Leakage Current vs I/O Voltage (Switch OFF)
Figure 6-5 Negative Supply Current vs Temperature

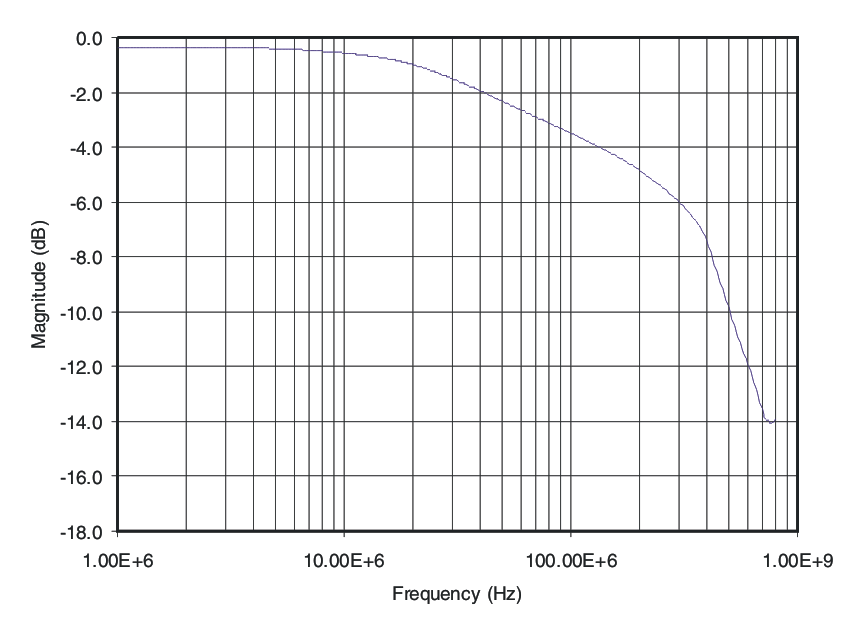

Figure 6-7 Bandwidth Dual Supply (±5 V)

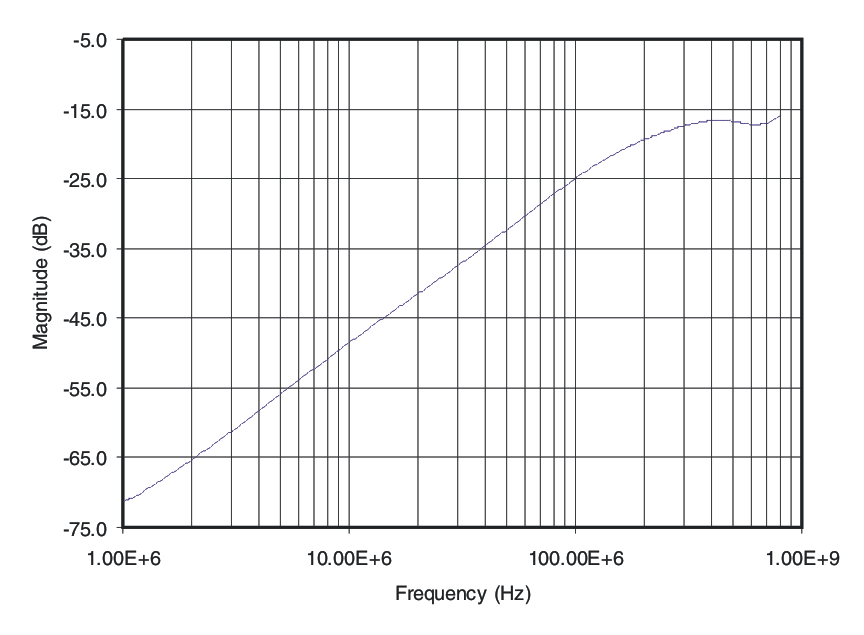

Figure 6-9 Crosstalk vs Frequency Dual Supply (±5 V)

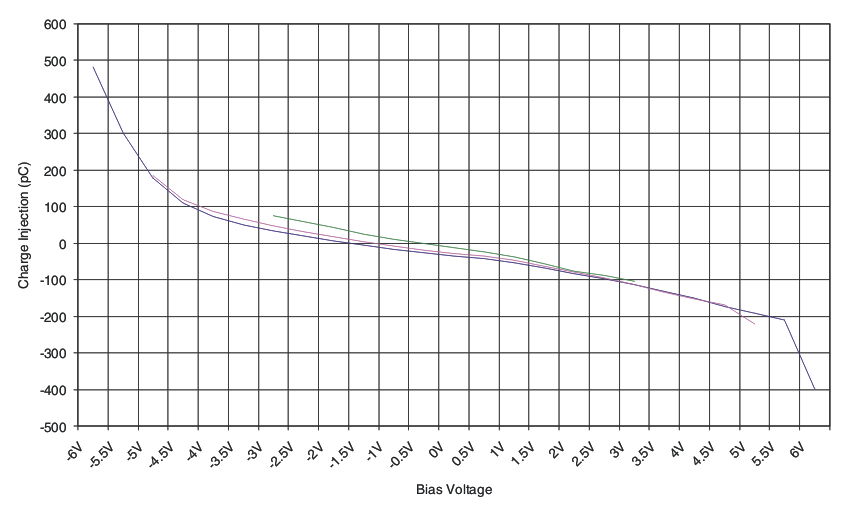

Figure 6-11 Charge Injection vs Bias Voltage

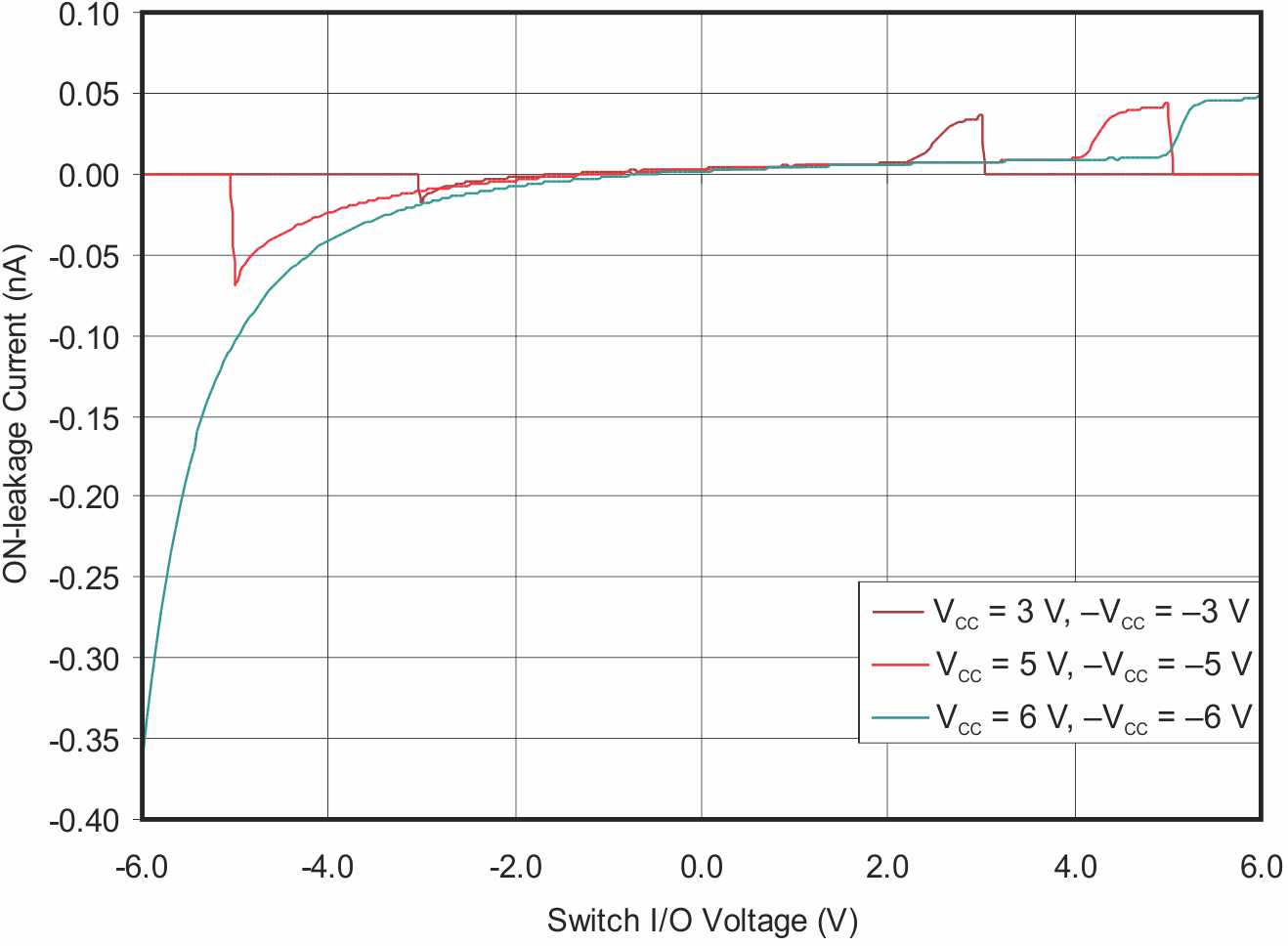

Figure 6-2 Leakage Current vs I/O Voltage (Switch
ON)

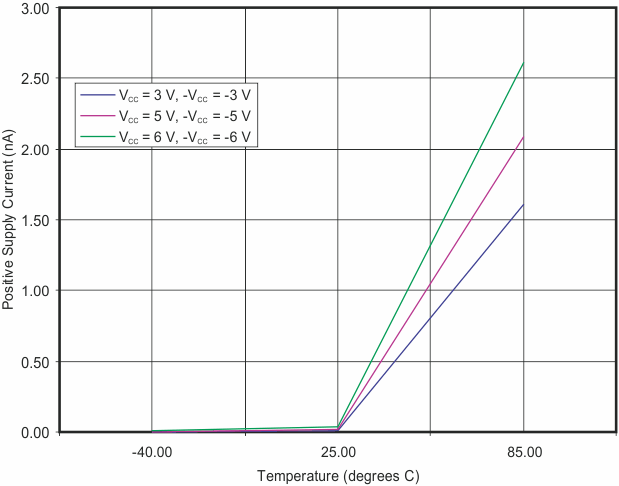

Figure 6-4 Positive Supply Current vs Temperature

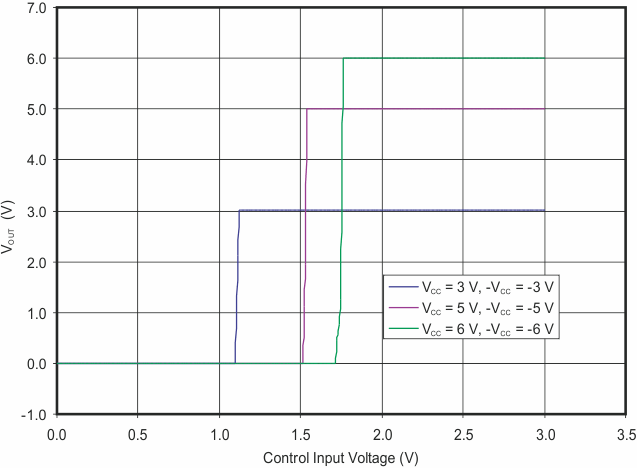

Figure 6-6 Control Input (IN) Threshold Voltage
Figure 6-8 Off

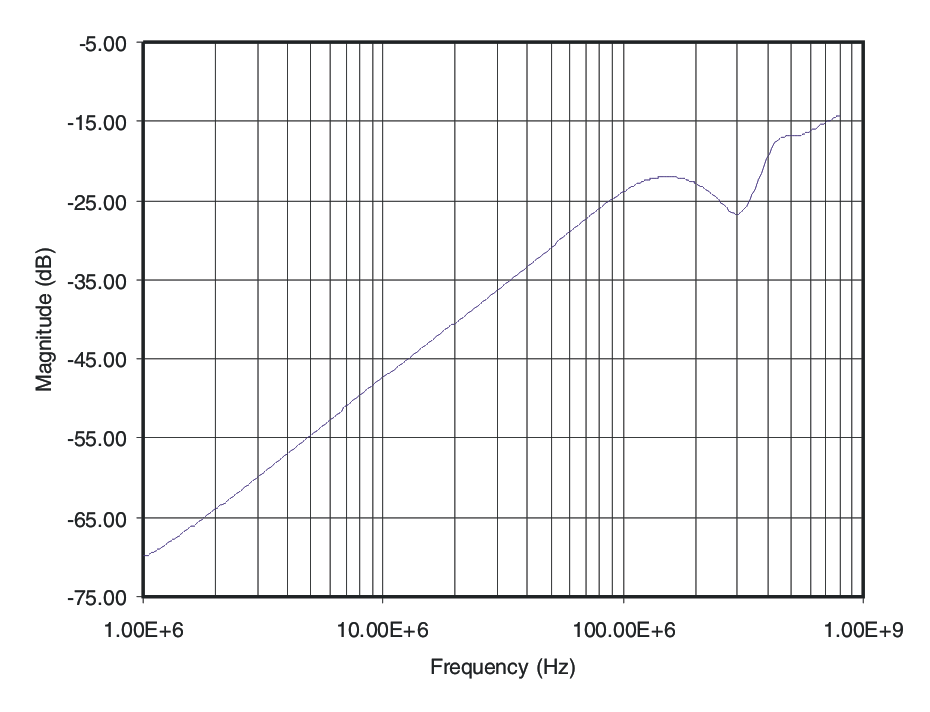

Isolation vs Frequency Dual Supply (±5 V)

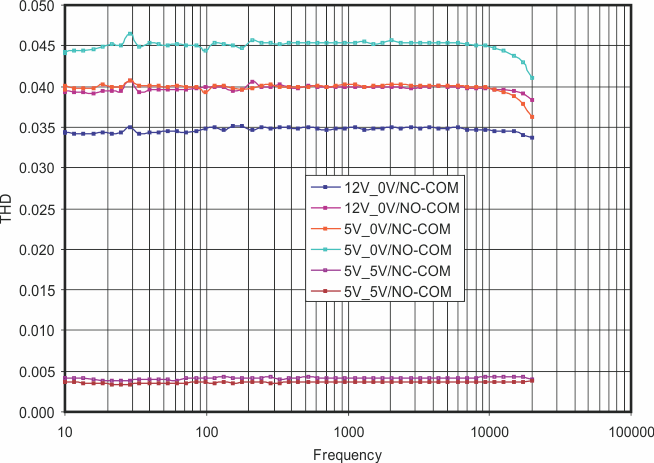

Figure 6-10 THD+N (%) vs Frequency
