8.2.3 Application Curve

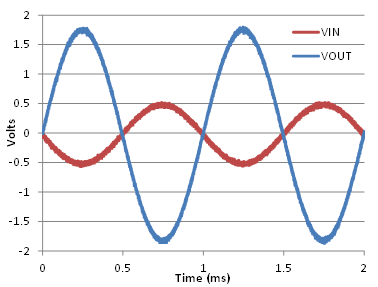

TS321 app_graph.gifFigure 9. Input and Output Voltages of the Inverting Amplifier
