8.2 Typical Application

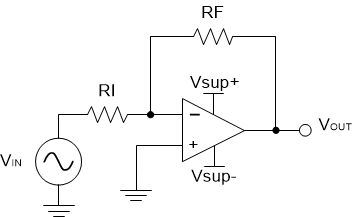

A typical application for an operational amplifier in an inverting amplifier. This amplifier takes a positive voltage on the input, and makes the voltage a negative voltage of the same magnitude. In the same manner, the amplifier makes negative voltages positive.

TS321 app_sch.gifFigure 8. Typical Application Schematic
