6.6 Typical Characteristics

TS321 IIB.png
Figure 1. Input Current vs Temperature

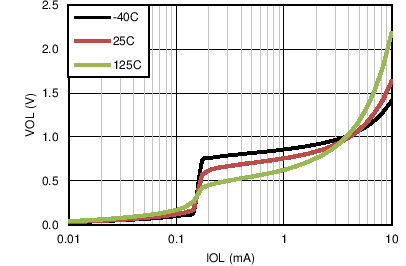

TS321 IOL.png
Figure 3. Output Sinking Characteristics

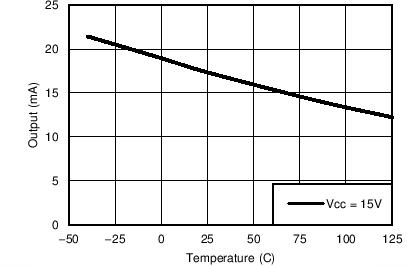

TS321 IOS_Low.png
Figure 5. Short-Circuit Current to Supply (1)

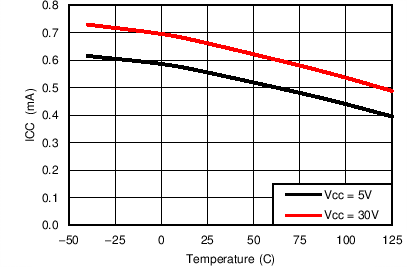

TS321 ICC.png
Figure 2. Supply Current vs Temperature
TS321 VOH_LOSS.png
Figure 4. Output Sourcing Characteristics
TS321 IOS_High.png
Figure 6. Short-Circuit Current to Ground
1. Short circuits from outputs to VCC can cause excessive heating and eventual destruction.
