7.3.1 Power-Up Sequencing

The power-up sequence for the TSER953 is as follows:

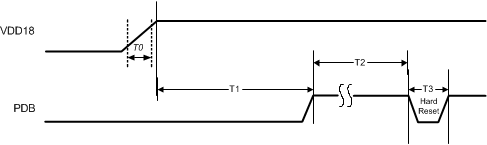

TSER953 Power Supply SequencingFigure 7-6 Power Supply Sequencing
Table 7-4 Timing Diagram for the Power Supply Start-Up and Initialization Sequences
PARAMETERMINTYPMAXUNITNOTES
T0VDD18 rise time0.05msat 10/90%
T1VDD18 to PDB0msAfter VDD18 is stable
T2PDB high time before PDB hard reset1ms
T3PDB high to low pulse width3msHard reset

(optional)
