9 Applications and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

9.1 Application Information

The TUSB8042 is a four-port USB 3.1 Gen1 compliant hub. It provides simultaneous SuperSpeed USB and high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed, or low speed connections on the downstream port. The TUSB8042 can be used in any application that needs additional USB compliant ports. For example, a specific notebook may only have two downstream USB ports. By using the TUSB8042, the notebook can increase the downstream port count to five.

9.2 Typical Application

9.2.1 Discrete USB Hub Product

A common application for the TUSB8042 is as a self powered standalone USB hub product. The product is powered by an external 5V DC Power adapter. In this application, using a USB cable TUSB8042 upstream port is plugged into a USB Host controller. The downstream ports of the TUSB8042 are exposed to users for connecting USB hard drives, cameras, flash drives, and so forth.

TUSB8042 discrete_USB_hub_sllset2.gif Figure 27. Discrete USB Hub Product

9.2.1.1 Design Requirements

Table 31. Design Parameters

DESIGN PARAMETER EXAMPLE VALUE
VDD Supply 1.1 V
VDD33 Supply 3.3 V
Upstream Port USB Support (SS, HS, FS) SS, HS, FS
Downstream Port 1 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Downstream Port 2 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Downstream Port 3 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Downstream Port 4 USB Support (SS, HS, FS, LS) SS, HS, FS, LS
Number of Removable external exposed Downstream Ports 4
Number of Non-Removable external exposed Downstream Ports 0
Full Power Management of Downstream Ports Yes. (FULLPWRMGMTZ = 0)
Individual Control of Downstream Port Power Switch Yes. (GANGED = 0)
Power Switch Enable Polarity Active High. (PWRCTL_POL = 1)
Battery Charge Support for Downstream Port 1 Yes
Battery Charge Support for Downstream Port 2 Yes
Battery Charge Support for Downstream Port 3 Yes
Battery Charge Support for Downstream Port 4 Yes
I2C EEPROM Support No
24MHz Clock Source Crystal

9.2.1.2 Detailed Design Procedure

9.2.1.2.1 Upstream Port Implementation

The upstream of the TUSB8042 is connected to a USB3 Type B connector. This particular example has GANGED pin and FULLPWRMGMTZ pin pulled low which results in individual power support each downstream port. The VBUS signal from the USB3 Type B connector is feed through a voltage divider. The purpose of the voltage divider is to make sure the level meets USB_VBUS input requirements

TUSB8042 upstream_port_imp_sllset2.gif Figure 28. Upstream Port Implementation

9.2.1.2.2 Downstream Port 1 Implementation

The downstream port 1 of the TUSB8042 is connected to a USB3 Type A connector. With BATEN1 pin pulled up, Battery Charge support is enabled for Port 1. If Battery Charge support is not needed, then pull-up resistor on BATEN1 should be uninstalled.

TUSB8042 downstream_port1_imp_sllset2.gif Figure 29. Downstream Port 1 Implementation

9.2.1.2.3 Downstream Port 2 Implementation

The downstream port 2 of the TUSB8042 is connected to a USB3 Type A connector. With BATEN2 pin pulled up, Battery Charge support is enabled for Port 2. If Battery Charge support is not needed, then pull-up resistor on BATEN2 should be uninstalled. For ferrite bead used on the VBUS connection, a lower resistance is recommended due to noticeable IR drop during high current charging modes. The isolation between the Type-A connectors shield ground and signal ground pins is not required. Some applications may have better ESD/EMI performance when the grounds are shorted together.

TUSB8042 downstream_port2_imp_sllset2.gif Figure 30. Downstream Port 2 Implementation

9.2.1.2.4 Downstream Port 3 Implementation

The downstream port3 of the TUSB8042 is connected to a USB3 Type A connector. With BATEN3 pin pulled up, Battery Charge support is enabled for Port 3. If Battery Charge support is not needed, then pull-up resistor on BATEN3 should be uninstalled. For ferrite bead used on the VBUS connection, a lower resistance is recommended due to noticeable IR drop during high current charging modes. The isolation between the Type-A connectors shield ground and signal ground pins is not required. Some applications may have better ESD/EMI performance when the grounds are shorted together.

TUSB8042 downstream_port3_imp_sllset2.gif Figure 31. Downstream Port 3 Implementation

9.2.1.2.5 Downstream Port 4 Implementation

The downstream port 4 of the TUSB8042 is connected to a USB3 Type A connector. With BATEN4 pin pulled up, Battery Charge support is enabled for Port 4. If Battery Charge support is not needed, then pull-up resistor on BATEN4 should be uninstalled. For ferrite bead used on the VBUS connection, a lower resistance is recommended due to noticeable IR drop during high current charging modes. The isolation between the Type-A connectors shield ground and signal ground pins is not required. Some applications may have better ESD/EMI performance when the grounds are shorted together.

TUSB8042 downstream_port4_imp_sllset2.gif Figure 32. Downstream Port 4 Implementation

9.2.1.2.6 VBUS Power Switch Implementation

This particular example uses the Texas Instruments TPS2561 Dual Channel Precision Adjustable Current-Limited power switch. For details on this power switch or other power switches available from Texas Instruments, refer to the Texas Instruments website.

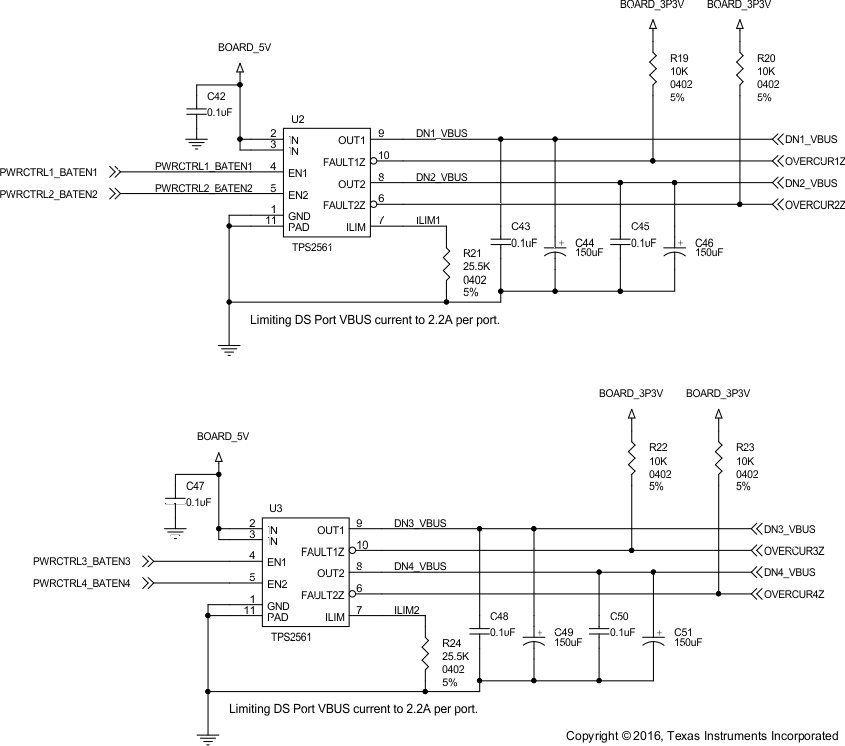

TUSB8042 vbus_imp_sllset2.gif Figure 33. VBUS Power Switch Implementation

9.2.1.2.7 Clock, Reset, and Misc

The PWRCTL_POL is left unconnected which results in active high power enable (PWRCTL1, PWRCTL2, PWRCTL3, and PWRCTL4) for a USB VBUS power switch. SMBUSz pin is also left unconnected which will select I2C mode. Both PWRCTL_POL and SMBUSz pins have internal pull-ups. The 1 µF capacitor on the GRSTN pin can only be used if the VDD11 supply is stable before the VDD33 supply. The depending on the supply ramp of the two supplies the capacitor size may have to be adjusted.

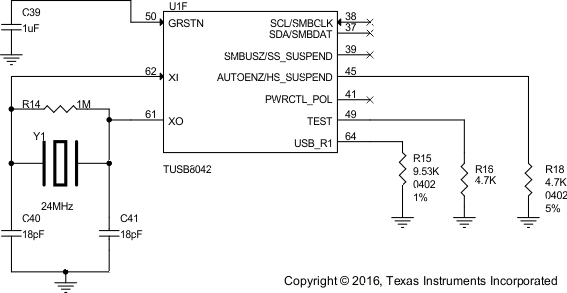

TUSB8042 clock_reset_misc_sllset2.gif Figure 34. Clock, Reset, and Misc

9.2.1.2.8 TUSB8042 Power Implementation

TUSB8042 pwr_imp_sllset2.gif Figure 35. TUSB8042 Power Implementation

9.2.1.3 Application Curves

TUSB8042 eye_us_sllsee4.gif
Figure 36. Upstream Port
TUSB8042 eye_ds2_sllsee4.gif
Figure 38. Downstream Port 2
TUSB8042 eye_ds4_sllsee4.gif
Figure 40. Downstream Port 4
TUSB8042 eye_hs_ds1_sllsee4.gif
Figure 42. High-Speed Downstream Port 1
TUSB8042 eye_hs_ds3_sllsee4.gif
Figure 44. High-Speed Downstream Port 3
TUSB8042 eye_ds1_sllsee4.gif
Figure 37. Downstream Port 1
TUSB8042 eye_ds3_sllsee4.gif
Figure 39. Downstream Port 3
TUSB8042 eye_hs_us_sllsee4.gif
Figure 41. High-Speed Upstream Port
TUSB8042 eye_hs_ds2_sllsee4.gif
Figure 43. High-Speed Downstream Port 2
TUSB8042 eye_hs_ds4_sllsee4.gif
Figure 45. High-Speed Downstream Port 4
