6.5 Programmable Dead Time

Connecting the DT pin to GND through an appropriate resistor (RDT) sets a dead-time interval. For more details on dead time, refer to Section 7.4.2.

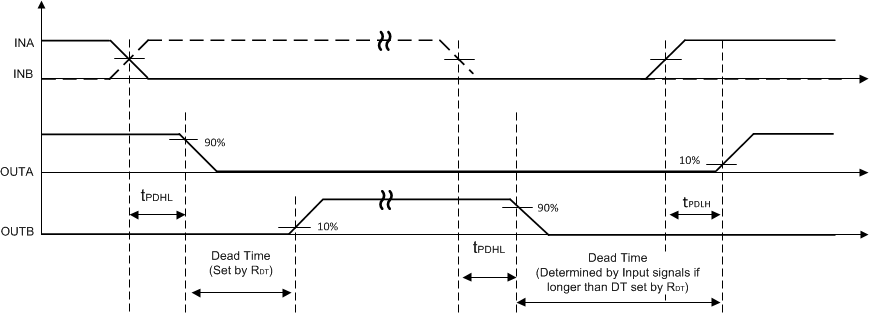

GUID-C2C9D0CE-A951-4CD5-9C9B-C76177A081F5-low.gif Figure 6-6 Dead Time Switching Parameters
