6.2 Propagation Delay and Pulse Width Distortion

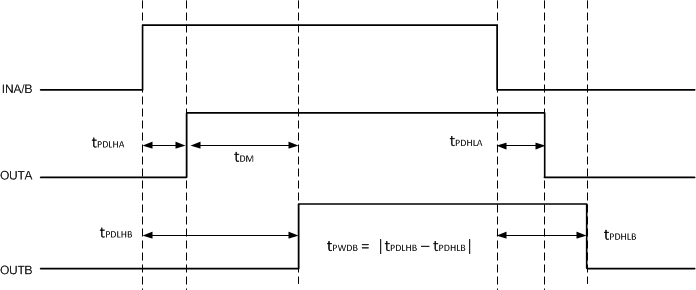

Figure 6-3 shows calculation of pulse width distortion (tPWD) and delay matching (tDM) from the propagation delays of channels A and B. To measure delay matching, both inputs must be in phase, and the DT pin must be shorted to VCCI to enable output overlap.

GUID-2272B557-823E-4F55-ABF3-063814FD7331-low.gifFigure 6-3 Delay Matching and Pulse Width Distortion
