5.12 Typical Characteristics

UCC21710-Q1 Output High Drive Current vs. TemperatureFigure 5-4 Output High Drive Current vs. Temperature
UCC21710-Q1 IVCCQ Supply Current vs. Temperature
IN+ = High IN- = Low
Figure 5-6 IVCCQ Supply Current vs. Temperature
UCC21710-Q1 IVCCQ Supply Current vs. Input FrequencyFigure 5-8 IVCCQ Supply Current vs. Input Frequency
UCC21710-Q1 IVDDQ Supply Current vs. Temperature
IN+ = Low IN- = Low
Figure 5-10 IVDDQ Supply Current vs. Temperature

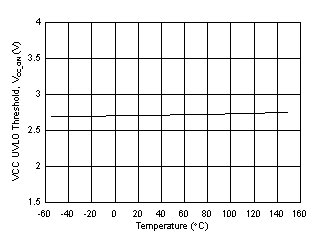

UCC21710-Q1 VCC UVLO vs. TemperatureFigure 5-12 VCC UVLO vs. Temperature

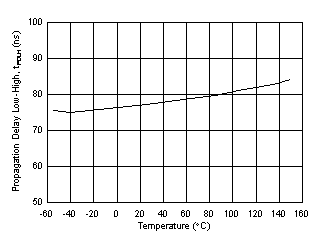

UCC21710-Q1 Propagation Delay tPDLH vs. Temperature
VCC = 3.3V VDD=18V CL = 100pF
RON = 0Ω ROFF = 0Ω
Figure 5-14 Propagation Delay tPDLH vs. Temperature
UCC21710-Q1 tr Rise Time vs. Temperature
VCC = 3.3V VDD=18V CL = 10nF
RON = 0Ω ROFF = 0Ω
Figure 5-16 tr Rise Time vs. Temperature

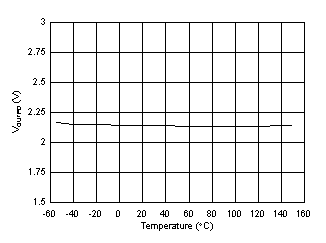

UCC21710-Q1 VOUTPD Output Active Pulldown Voltage vs. TemperatureFigure 5-18 VOUTPD Output Active Pulldown Voltage vs. Temperature
UCC21710-Q1 VCLP-OUT(L) Short Circuit Clamping Voltage vs. Temperature
Figure 5-20 VCLP-OUT(L) Short Circuit Clamping Voltage vs. Temperature
UCC21710-Q1 ICLMPI Miller Clamp Sink Current vs. Temperature
Figure 5-22 ICLMPI Miller Clamp Sink Current vs. Temperature
UCC21710-Q1 tOCOFF OC Propagation Delay vs. Temperature
Figure 5-24 tOCOFF OC Propagation Delay vs. Temperature
UCC21710-Q1 tOCFLT OC to FLT Low Delay Time vs. Temperature
Figure 5-26 tOCFLT OC to FLT Low Delay Time vs. Temperature

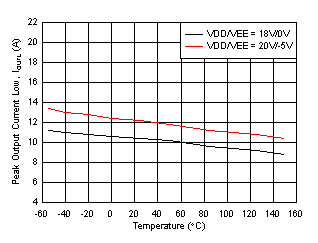

UCC21710-Q1 Output Low Driver Current vs. TemperatureFigure 5-5 Output Low Driver Current vs. Temperature
UCC21710-Q1 IVCCQ Supply Current vs. Temperature
IN+ = Low IN- = Low
Figure 5-7 IVCCQ Supply Current vs. Temperature
UCC21710-Q1 IVDDQ Supply Current vs. Temperature
IN+ = High IN- = Low
Figure 5-9 IVDDQ Supply Current vs. Temperature
UCC21710-Q1 IVDDQ Supply Current vs. Input Frequency
Figure 5-11 IVDDQ Supply Current vs. Input Frequency
UCC21710-Q1 VDD UVLO vs. TemperatureFigure 5-13 VDD UVLO vs. Temperature
UCC21710-Q1 Propagation Delay tPDHL vs. Temperature
VCC = 3.3V VDD=18V CL = 100pF
RON = 0Ω ROFF = 0Ω
Figure 5-15 Propagation Delay tPDHL vs. Temperature

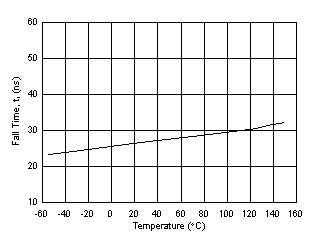

UCC21710-Q1 tf Fall Time vs. Temperature
VCC = 3.3V VDD=18V CL = 10nF
RON = 0Ω ROFF = 0Ω
Figure 5-17 tf Fall Time vs. Temperature
UCC21710-Q1 VCLP-OUT(H) Short Circuit Clamping Voltage vs. Temperature
Figure 5-19 VCLP-OUT(H) Short Circuit Clamping Voltage vs. Temperature

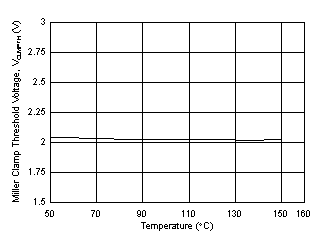

UCC21710-Q1 VCLMPTH Miller Clamp Threshold Voltage vs. TemperatureFigure 5-21 VCLMPTH Miller Clamp Threshold Voltage vs. Temperature
UCC21710-Q1 tDCLMPI Miller Clamp ON Delay Time vs. Temperature
Figure 5-23 tDCLMPI Miller Clamp ON Delay Time vs. Temperature
UCC21710-Q1 VOCTH OC Detection Threshold vs. Temperature
Figure 5-25 VOCTH OC Detection Threshold vs. Temperature
