6.1.1 Regular Turn-OFF

Figure 7-1 shows the propagation delay measurement for non-inverting configurations. Figure 7-2 shows the propagation delay measurement with the inverting configurations.

UCC21710-Q1 Non-inverting Logic Propagation Delay Measurement Figure 6-1 Non-inverting Logic Propagation Delay Measurement

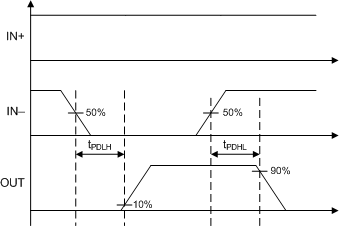

UCC21710-Q1 Inverting Logic Propagation Delay Measurement Figure 6-2 Inverting Logic Propagation Delay Measurement
