6.4.2 VDD UVLO

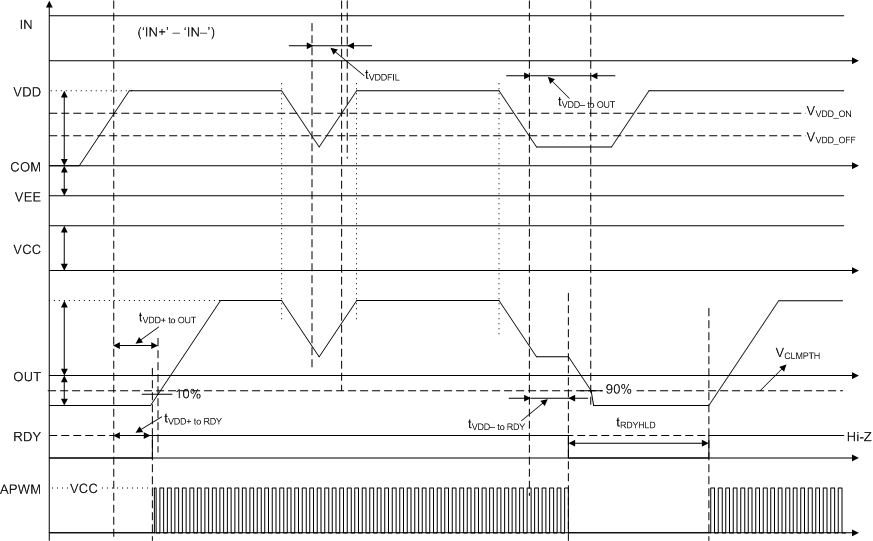

The VDD UVLO protection details are discussed in this section. Figure 7-9 shows the timing diagram illustrating the definition of UVLO ON/OFF threshold, deglitch filter, response time, RDY and AIN–APWM.

UCC21710-Q1 VDD UVLO Protection Timing Diagram Figure 6-9 VDD UVLO Protection Timing Diagram
